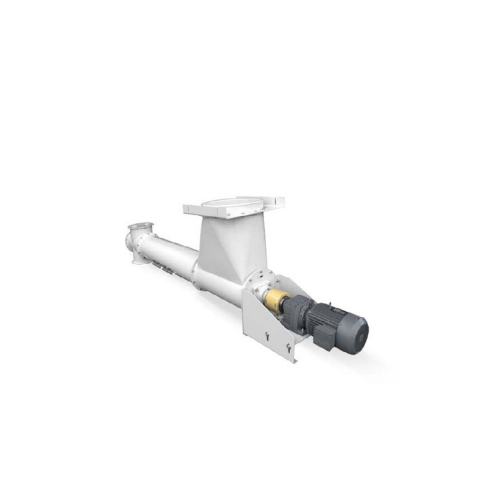

Tube screw conveyor for flour and fine-milled materials
Conveying flour and fine-to-medium milled materials efficiently is a common challenge in industries such as milling and food processing. Ensuring reliability and minimizing energy consumption are crucial while handling such delicate materials.
Transport flour and fine-milled materials horizontally or inclined
The Tube Screw Conveyor by Ugur Promilling specializes in the horizontal or inclined transport of all flour and fine-to-medium milled materials. It incorporates a geared motor that transfers power via a coupling to the conveyor shaft. The spiral blades attached to the shaft enable efficient movement of materials from the entry hopper to the exit, which can be fed into another screw conveyor or elevator. To maintain consistent and efficient operation, it is essential to select an appropriately powered motor based on the conveyor’s capacity. The system is cost-effective, occupies minimal space, and requires low power. Depending on configuration, the conveyor shaft can be driven using a chain gear or belt.
Benefits
- Low investment cost
- Minimal space requirement
- Low power consumption
- Simple structure for easy maintenance
- Adaptable to different driving mechanisms (chain gear or belt)
