Travelling bridges for sludge removal in wastewater treatment plants
Efficiently removing sludge and scum is crucial in wastewater treatment to ensure optimal water quality and compliance with environmental standards. Travelling bridges streamline this process by automating sludge collection in rectangular settling tanks.
Removes Sludge and Scum from Wastewater

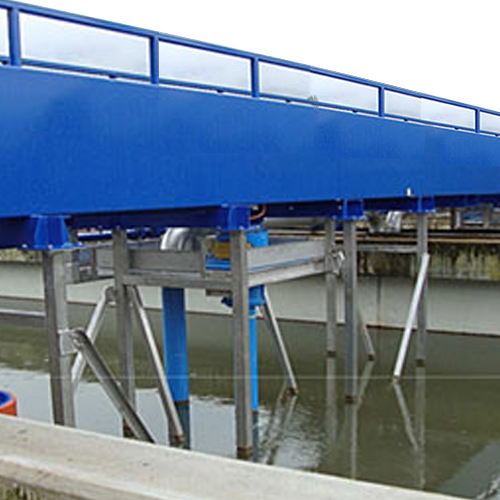

The PVV Travelling Bridge for Sludge Removal from WAMGROUP is an engineered system designed for efficient removal of sludge and scum in both municipal and industrial wastewater settings. Operating on a multi-stage system, it features a movable truck mounted on traction trolleys, with a surface scraper and immersed pumps for precise sludge transfer into an external hopper. Commonly employed in municipal wastewater treatment, pulp and paper processing, and tannery effluent management, it is capable of handling tanks up to 12 meters wide and 50 meters long, ensuring high throughput with continuous, automated operations. The system is constructed with options in hot-dip galvanized carbon steel, 304L or 316L stainless steel, ensuring durability and corrosion resistance for harsh environments. It integrates easily into existing infrastructure due to its adaptable design and provides easy operation via its control panel. The equipment supports energy-efficient operation with alternative voltage and motor protection options, ensuring cost-effective performance and minimal maintenance requirements.
Benefits
- Ensures efficient sludge and scum removal, enhancing water treatment effectiveness.
- Installs quickly and easily, minimizing downtime during system upgrades.
- Operates continuously and automatically, reducing manual intervention and labor costs.
- Offers corrosion-resistant materials, ensuring longevity in harsh industrial environments.
- Adapts to existing tank configurations, facilitating seamless integration into current setups.
- Applications
- Tanneries,Industrial wastewater,By-products processing,Animal by-products handling,Industrial solid waste handling,Sludge treatment,Clean water treatment,Pulp,Starch,Paper processing,Dyeing works,Municipal wastewater
- End products
- Filtered dye wastewater,Processed pulp sludge,Dewatered sludge cake,Processed industrial waste solids,Clarified effluent,Treated tannery effluent,Recycled water,Rendered animal by-products
- Steps before
- Primary sedimentation,Coagulation,Flocculation
- Steps after
- Sludge thickening,Scum processing,Effluent polishing
- Input ingredients
- wastewater,sludge,scum
- Output ingredients
- removed sludge,removed scum,clean water
- Market info
- WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.
- Tank Width
- Up to 12m
- Tank Length
- Up to 50m
- Material
- Hot dip-galvanised carbon steel / 304 L / 316 L SS
- Automation
- Central gear motor
- Installation Type
- Quick installation
- Travelling System
- Wheels or Rails
- Voltage and Frequency
- Alternative options available
- Motor Protection
- Alternative degree available
- Working mechanism
- Movable truck
- Automation level
- Central gear motor
- Sludge removal process
- Pump and scraper system
- Installation flexibility
- Quick installation
- Control panel type
- Integrated
- Suction method
- Air lift (optional)
- Abrasion resistance
- High
- Biological compatibility
- Yes
- Cleanability
- Easy to clean
- Corrosive resistance (e.g. acids)
- Medium
- Density/particle size
- 1.0–2.5 g/cm³
- Machine footprint
- Up to 12m wide and 50m long
- Tank shape
- Rectangular
- Material
- Hot dip-galvanised carbon steel / 304 L SS / 316 L SS
- Suction method
- Sludge suction by means of air lift
- Travelling system
- Travelling system on rails or wheels
- Control panel type
- Available
- Tank size
- Up to 12m wide and 50m long
- Bridge Length and Width
- Up to 12m wide and 50m long
- Material
- 304 L SS / 316 L SS / painting
- Traveling System
- Rails or wheels
- Cable Holding
- Festooned cables / Cable holding chain
- Suction Method
- Sludge suction by means of air lift
- Voltage and Frequency
- Alternative options available
- Motor Protection
- Alternative degree of protection available
