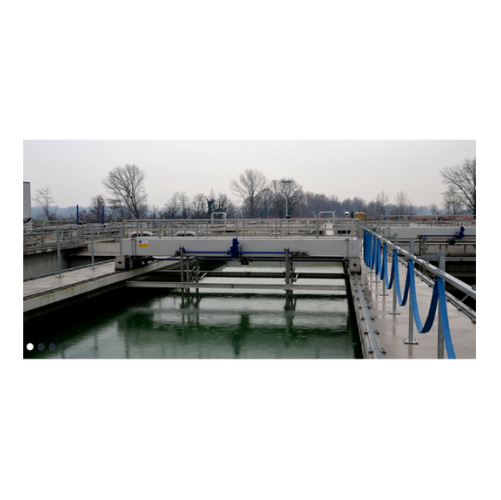

Travelling bridges for sludge removal in wastewater treatment

Achieve comprehensive sludge and scum removal in wastewater treatment processes with a robust automated bridge system designed for high-efficiency operations in settling tanks, ensuring consistently treated effluent quality.

Removes Sludge and Scum in Wastewater Treatment

The PVS Travelling Bridge from WAMGROUP is designed for efficient sludge and scum removal in both municipal and industrial wastewater treatment settings. Operating with a robust gear motor, it features both surface and bottom scrapers that seamlessly convey settled sludge into collection hoppers and scum into channels. Specifically engineered for rectangular tanks up to 12m wide and 50m long, it integrates smoothly into existing treatment systems with minimal installation effort. Its construction from hot-dip galvanized carbon steel or stainless steel (304L/316L) ensures long-term durability and corrosion resistance. The PVS model offers options like cable holding chains and a travel system on rails, catering to varied operational needs. With the added benefit of low maintenance costs, this system supports continuous operation in applications ranging from sewage treatment to industrial by-products processing, delivering treated and clarified effluents efficiently.

Benefits

  • Enhances water clarity by efficiently removing sludge and scum.
  • Simplifies integration into existing tanks, minimizing installation time.
  • Promotes long-term reliability with durable, corrosion-resistant materials.
  • Lowers maintenance costs with a single gear motor operation.
  • Accommodates diverse operational needs with customizable configuration options.

General


Applications
Industrial wastewater,Sludge treatment,Environmental technology,Wastewater treatment,Scum treatment,Municipal wastewater
End products
Treated sewage water,Clarified effluents,Scum-free water outputs,Dehydrated sludge cakes,Recycled industrial water
Steps before
Primary sedimentation,Pre-treatment,Coagulation and flocculation
Steps after
Sludge treatment,Water purification,Disinfection
Input ingredients
wastewater,sludge,scum,floating matter
Output ingredients
removed sludge,collected scum,treated wastewater
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Tank Width
Up to 12m
Tank Length
Up to 50m
Material
Hot dip-galvanised carbon steel / 304 L / 316 L SS
Automation
PLC-controlled
Cable Holding
Festooned cables
Travelling System
Rails or wheels
Motor Protection
Alternative degree available
Voltage and Frequency
Alternative available

Operating Characteristics


Sludge removal method
Surface and bottom scrapers
Bridge movement
Back and forth on a flat tank bottom
Scraper operation
Single gear motor operation
Installation
Quick installation into existing tanks
Automation level
Central gear motor control
Trolley system
Traction trolleys with drive wheels
Material options
Hot dip-galvanised steel / 304 L / 316 L SS

Material Compatibility


Corrosive resistance (e.g. acids)
Hot dip-galvanised carbon steel / 304 L / 316 L SS

Physical Characteristics


Tank width
up to 12m
Tank length
up to 50m
Discharge method
Scraper into sludge collecting hopper
Materials
Hot dip-galvanised carbon steel / 304 L / 316 L SS
Control panel type
Control panel
Travelling system
Wheels / Rails

Custom Options


Tank width
Up to 12m
Tank length
Up to 50m
Material
304 L / 316 L SS / Carbon Steel
Cable holding chain
Available
Travelling system
Rails or wheels
Voltage and frequency
Alternative options available
Motor protection degree
Alternative options available
