Top loading chamber furnace for tall crucibles

Designed for handling tall crucibles and heavy components, this top-loading chamber furnace ensures optimal temperature uniformity with heating elements on all four walls, making it essential for precise heat treatment processes.

Heats and Processes Crucibles and Materials

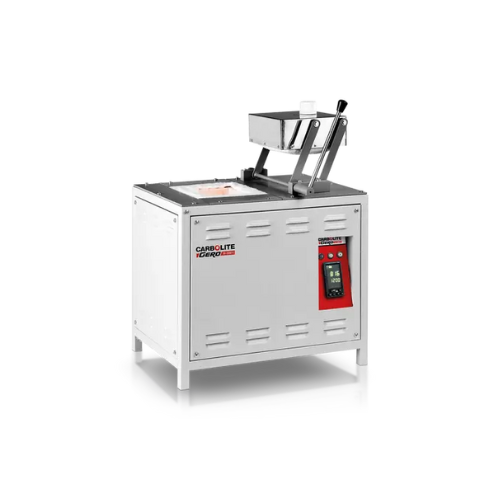

The Top Loading Chamber Furnace VCF 12/5 from Carbolite Gero is an exceptional heating solution designed for precision in materials testing and processing. This furnace features a top-loading design ideal for handling tall crucibles and heavy components, making it versatile for applications in crucible linings, ceramics, metal alloys, and composite materials. The VCF 12/5 uses free radiating wire elements on all four sides to ensure uniform temperature distribution and minimize damage from potential spills. It can reach a maximum operating temperature of 1200°C, with chamber volumes available in multiple sizes to fit diverse production needs.

This furnace integrates seamlessly into laboratory and R&D environments, supporting processes like annealing, ashing, and testing with precision temperature control via the Carbolite Gero 301 controller. Automation options include sophisticated digital controllers and multi-segment programmers, enhancing process flexibility with features like remote monitoring. The VCF 12/5 is also designed for energy efficiency, reducing operational costs through optimized motor control, and it offers over-temperature protection for added safety in unattended operations. Its robust construction allows for both bench-mounting or floor-standing configurations, depending on space requirements. This equipment is crucial for industries such as aerospace, electronics, ceramics, and industrial manufacturing, where precise heat treatment is vital.

Benefits

  • Ensures consistent product quality with uniform temperature distribution across all heating cycles.
  • Increases operational safety by minimizing risks associated with spills and overheating.
  • Reduces energy consumption through optimized motor and temperature control systems.
  • Offers flexible integration with both bench-top and floor-standing setups to accommodate space limitations.
  • Enhances process versatility for a range of materials, supporting diverse laboratory and manufacturing needs.

General


Applications
Chemicals,Ceramics,Materials science,Metals,Crucibles,Laboratory equipment,Components
End products
Heat-resistant components,Laboratory test samples,Chemical compounds,Ceramic tiles,Composite materials,Metal alloys,Crucible linings
Steps before
Sample preparation,Loading of tall crucibles,Calibration of temperature controls,Material loading
Steps after
Cooling of components,Unloading of processed materials,Inspection for uniform heat treatment,Quality assurance testing
Input ingredients
tall crucibles,heavy components
Output ingredients
uniform heat-treated materials
Market info
Carbolite Gero is renowned for designing and manufacturing high-temperature laboratory and industrial furnaces and ovens, offering expertise in heat treatment solutions, with a reputation for quality, reliability, and precise thermal processing across various industries.

Technical Specifications


Maximum Operating Temperature
1200°C
Chamber Volume
5,10,23 or 100 L
Heating Elements
Free radiating wire elements in all 4 sides
Door Type
Vented top opening door
Control Panel
Angled control panel,protected and clearly visible
Controller Type
Carbolite Gero 301 controller
Control Features
Single ramp to set-point,process timer
Thermocouple Protection
Ceramic sheath
Optional Controller Features
Digital communication options,over-temperature protection

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
Manual / PLC optional
Temperature control
Single ramp to set-point
Cooling method
Vented top opening
Thermal uniformity
4-sided heating elements
Temperature range
Up to 1200°C

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


CE marking
Yes
ATEX certification
No
ISO 9001
Yes
ISO 17025
No

Physical Characteristics


Maximum operating temperature
1200°C
Chamber volume
5,10,23,or 100 litres
Heating elements
Free radiating wire elements in all 4 sides of chamber
Control panel
Angled,protected but clearly visible
Loading method
Top loading
Door type
Vented top opening door
Machine footprint
Bench-mounted or floor location

Custom Options


Control panel type
Angled,protected but clearly visible
Digital controllers
Available range includes sophisticated options with digital communication
Multisegment programmers
Available as options
Data loggers
Available with digital communication options
Over-temperature protection
Available to protect valuable contents and enabled unattended operation
