Tomato receiving and sorting system

Ensure top-quality tomato products by efficiently handling unloading, washing, and sorting of fresh produce. This system expertly prepares raw materials, eliminating impurities before they reach your processing line.

Unloads, Cleans, and Sorts Tomatoes and Fruits

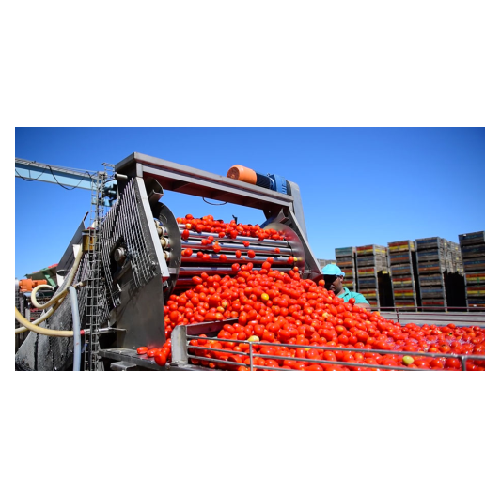

The FBR ELPO Receiving and Sorting System is engineered to enhance the efficiency of tomato and fruit processing lines. Integrating seamlessly into existing operations, this system uses a systematic approach to unloading, washing, and sorting. It employs bin and case dumpers to handle raw materials, while powerful shower systems on roller elevators ensure thorough cleaning. An automatic scraping system effectively removes impurities like mud and stones, while an optical sorter eliminates foreign bodies, guaranteeing purity. With capacities ranging from 5 to 100 tons per hour, it is ideal for producing tomato paste, sauces, diced products, and aseptic fruit juices. Its PLC controls facilitate smooth automation and integration, and the robust design options offer durability in demanding food processing environments. Customization is available to meet specific plant requirements, making it a versatile asset for tomato and fruit processing facilities seeking reliable pre-processing solutions.

Benefits

  • Enhances product quality by ensuring thorough cleaning and impurity removal.
  • Increases operational efficiency with high throughput capacity up to 100 t/h.
  • Lowers operational costs by minimizing manual intervention through automated systems.
  • Provides flexible integration into various processing lines with configurable options.
  • Supports sustainability efforts through efficient water filtration and recirculation.

General


Applications
Juice,Enzymatic products,Tomatoes,Fruit processing
End products
Tomato juice,Concentrated fruit juice,Aseptic fruit juices,Fruit enzymes,Peeled tomatoes,Fruit concentrates,Tomato paste,Diced tomatoes,Fruit puree,Tomato sauce
Steps before
Harvesting,Transportation
Steps after
Sorting,Processing,Juice Extraction,Sterilization,Aseptic Filling
Input ingredients
fresh tomatoes,raw material,harvested tomatoes
Output ingredients
washed tomatoes,sorted tomatoes,clean tomatoes
Market info
FBR ELPO is known for its expertise in manufacturing industrial equipment, specializing in engineered-to-order solutions for food and beverage processing, particularly in thermal processing and aseptic technology, and holds a strong reputation for innovation and reliability in the market.

Technical Specifications


Operating capacity
5–100 t/h
Unloading method
Bin dumpers / Case dumpers / Water spray nozzles
Cleaning system
Shower system with roller elevator
Sorting system
Optical sorter
Scraping system
Automatic (Redler)
Water filtration
Recirculated water filtration system

Operating Characteristics


Working mechanism
Bin dumpers,case dumpers,water spray nozzles
Integrated steps
Unloading,washing,scraping,sorting
Washing method
Shower system on roller elevator
Sorting method
Optical sorter
Capacity range
5 t/h to 100 t/h
Filtration type
Recirculated water filtration
Scraping system
Automatic scraping system (redler)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact
Basket or tank shape
Rectangular feeding channels
Feed method
Water spray nozzles / Bin dumpers / Case dumpers
Discharge method
Conveyor to sorting tables

Custom Options


Control panel type
PLC / HMI
Discharge method
Bin dumpers / case dumpers / water spray nozzles
