Thigh deboner for turkey processing

Optimize your turkey processing line with precise deboning and consistent meat yield, utilizing cutting-edge water jet technology for efficient separation and skinning, ensuring high-quality thigh fillets and deboned wings, all with minimal operator intervention.

Debones and Skins Turkey Thighs, Drumettes, and Wings

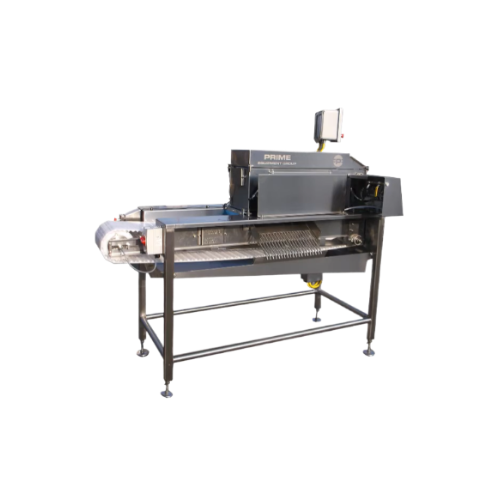

The CFS-LT3-T from Prime Equipment Group is an innovative solution for poultry processors, utilizing a precise water jet mechanism to efficiently debone turkey thighs, drumettes, and wings. This reliable machine simplifies the deboning process by employing a single operator while achieving precise meat separation and consistent skinning. Designed to integrate seamlessly into your production line, it supports continuous and semi-automated operations, ensuring optimal throughput and productivity. This system not only enhances yield but also minimizes bone chips due to its consistent action. With a configuration supporting electrical and water requirements tailored to industrial settings, it serves food, poultry, and meat processing industries effectively. Additionally, the machine’s compact design and straightforward maintenance requirements make it an ideal choice for processing facilities.

Benefits

  • Increases meat yield by precisely separating meat from bones with water jet technology.
  • Reduces labor costs with single-operator functionality.
  • Enhances meat quality with consistent skinning and minimal bone chipping.
  • Seamlessly integrates into existing production lines with uncomplicated design.
  • Minimizes operational disruptions with durable construction and easy maintenance.

General


Applications
Seafood,Turkey processing,Meat,Food processing,Poultry
End products
Turkey drumette meat,Turkey thigh fillets,Deboned turkey wings
Steps before
Cut-up,Preparation,Injection,Marination
Steps after
Further Processing,Intelligent Conveyor,Portioning
Input ingredients
turkey thighs,drumettes,two-joint wings
Output ingredients
boneless turkey meat,fillet
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Electrical Requirements
(1) 2 hp,(1) 0.18 hp
480V,3 ph,60 Hz,60 amps
Water Requirements
(1) 2" connection
40 PSI minimum
Air Requirements
100 PSI minimum
Dry Maintained
Pump Requirements
(1) 20 hp
480V,60 Hz,30 amps
Net Weight
Base Unit
Operation Requirement
Single operator
Automation Level
Single machine for multiple operations

Operating Characteristics


Working mechanism
Water jet deboning
Automation level
Single operator
Batch vs. continuous operation
Continuous Inline
Cleaning method
CIP
Energy efficiency
Optimized for yield
Changeover time
Minimal due to simple design

Material Compatibility


Density/particle size
0.5–2.5 g/cm³

Physical Characteristics


Machine footprint
Not specified
Discharge method
Not specified
Control panel type
Not specified
