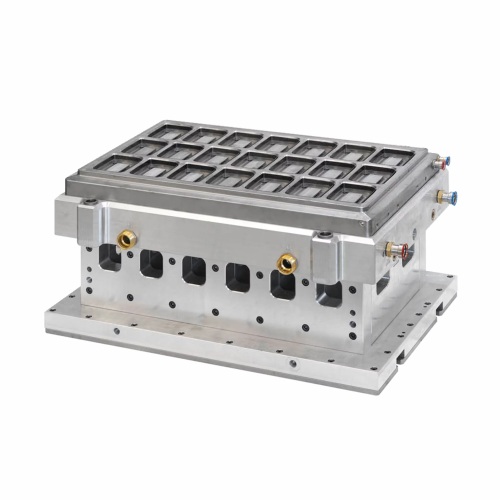

Thermoforming tools for polymer packaging

Optimize your production line with versatile thermoforming tools that enhance flexibility, efficiency, and precision for packaging manufacturing.

Forms and Cuts Thermoplastic Packaging

Kiefel’s Thermoforming Tools offer customized solutions for packaging professionals, featuring the Kiefel Cut-in-Place systems that seamlessly integrate forming and cutting processes. With these tools, you can efficiently produce plastic cups, trays, blisters, and lids across various materials like PP, PS, and PET. Designed for use on standard steel rule cutting machines, they ensure precision with minimal setup times. The system’s high cutting accuracy adapts to materials with variable shrinkage, eliminating the need for costly profile grinding. These tools reduce operational footprint while processing a wide range of films, enhancing flexibility and productivity. The system supports high-speed, continuous operation, suited for packaging, medical, and pharma industries. Additionally, Kiefel provides comprehensive support for customization and integration, making these tools a vital part of your production line.

Benefits

  • Enhances production efficiency with quick changeovers and minimal setup times.
  • Increases precision in cutting without the need for costly profile grinding.
  • Provides flexibility with compatibility across a wide range of plastic materials.
  • Optimizes workspace with a compact design, eliminating the need for separate cutting stations.
  • Improves operational flexibility, supporting high-speed, continuous production for diverse packaging needs.

General


Applications
Blisters,Lids,Trays,Packaging,Cups
End products
Pet blister packs,Plastic drinking cups,Disposable food packaging,Food serving trays,Thermoformed meal trays,Plastic container lids,Yogurt containers,Clamshell packaging
Steps before
Material preparation,Film loading,Pre-heating
Steps after
Trimming,Quality inspection,Packing
Input ingredients
PP,PS,PE,R-PET,PLA
Output ingredients
trays,cups,blisters,lids,plastic packaging
Market info
KIEFEL GmbH is renowned for engineering and manufacturing high-performance thermoforming and joining systems, specializing in solutions for the packaging, medical technology, and automotive industries, ensuring innovative and precise equipment to meet specific industrial demands.

Technical Specifications


Thermoforming System Compatibility
All common systems
Material Compatibility
PP,PS,PE,(R)PET,PLA
Tool Type
Separate forming/cutting,combined forming/cutting
Cutting System
Kiefel Cut-in-Place (BFS)
Cutting Accuracy
High accuracy
Space Requirements
Low,no separate cutting station needed
Tool Flexibility
Versatile,flexible
Changeover Time
Short equipping times
Automation
Online Thermoform Configurator

Operating Characteristics


Automation level
Manual / PLC / Automated
Changeover time
Quick changeover
Batch vs. continuous operation
Batch
Material Compatibility Flexibility
PP,PS,PE,(R)PET,PLA
Cutting accuracy
High
Film utilization efficiency
Optimized
Tool handling
Easy tool handling
Cut-in-Place system
Available
Tool compatibility
All standard steel rule cutting machines

Product type Characteristics


Tool deployment compatibility
All standard steel rule cutting machines

Physical Characteristics


Machine compatibility
All standard steel rule cutting machines
Material Compatibility
PP,PS,PE,(R)PET,PLA
Tool type
Separate forming and cutting,combined forming/cutting
Flexibility
High

Custom Options


Tool layout customization
Cavities number variation
Material compatibility
PP,PS,PE,(R)PET,PLA
System integration
Compatible with steel rule cutting machines
Forming/Cutting Configuration
Separate and combined options
Thermoform configurator
Online tool for customization
Flexibility
High flexibility in tool design
Changeover time
Short equipping times
