Smelting furnace for precious metals
Effortlessly achieve precise smelting and refining with advanced temperature control, optimizing the transformation of raw precious metals into high-quality ingots, bars, and alloys.
Melts and Refines Precious Metals

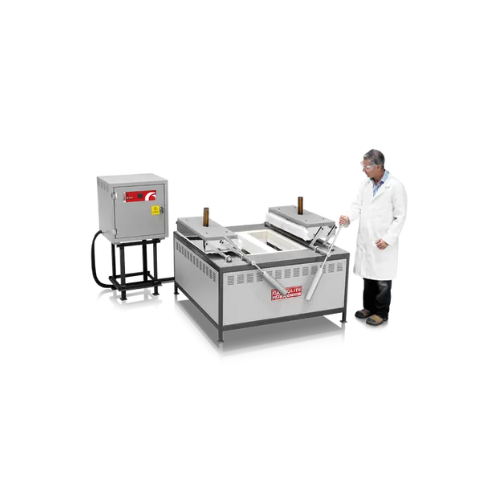

The SCF Series from Carbolite Gero is a robust top-loading crucible furnace engineered specifically for the smelting and refining of precious metals. Featuring silicon carbide heating elements and a refractory brick hearth, this furnace ensures uniform heating for optimal melting processes. Designed to handle various operations such as batch and manual smelting, it is ideal for transforming raw materials into refined gold, silver, or platinum products. The SCF furnaces come with vented lids and protective silicon carbide tiles, ensuring safe operation in industrial environments. With configurations available for different volumes, the SCF 4, SCF 8, SCF 24, and SCF 48 models cater to diverse processing needs. These furnaces support integration into metal processing lines with options for digital control interfaces like RS232 or Ethernet, providing flexibility and control. Constructed from durable materials, these furnaces resist high temperatures and corrosive conditions, making them suitable for jewelry manufacturing, metal refining, and laboratory settings.
Benefits
- Ensures high-purity end products by providing consistent, controlled heating for precise smelting and refining.
- Increases safety with vented lids and protective silicon carbide tiles to manage heat and emissions efficiently.
- Offers flexible processing capabilities with multiple chamber configurations to accommodate varying volumes and different precious metals.
- Enhances process control with advanced digital interface options, allowing seamless integration into existing production lines.
- Built for durability and high-temperature environments, reducing maintenance needs and extending equipment lifespan.
- Applications
- Metal refining,Mining industry,Precious metals,Metal processing,Jewelry manufacturing
- End products
- Palladium granules,Silver medals,Silver bars,Silver jewelry settings,Refined gold for electronics,Platinum alloys,Platinum beads,Gold jewelry castings,Gold coins,Gold ingots
- Steps before
- Ore Crushing,Material Sorting,Concentration,Pre-melting
- Steps after
- Refining,Casting,Cooling,Quality Inspection,Polishing
- Input ingredients
- precious metals,crucibles
- Output ingredients
- smelted metals
- Market info
- Carbolite Gero is renowned for designing and manufacturing high-temperature laboratory and industrial furnaces and ovens, offering expertise in heat treatment solutions, with a reputation for quality, reliability, and precise thermal processing across various industries.
- Maximum Operating Temperature
- 1400 °C
- Chamber Construction Material
- Refractory bricks,Silicon carbide tiles
- Heating Element Type
- Silicon carbide
- Chamber Design
- Single and Twin Chambers
- Lid Design
- Horizontal,Parallel Opening
- Lid Venting Diameter
- 50 mm
- Timer
- 24 hour,7 day
- Controller Options
- Digital controllers,multi-segment programmers
- Communication Interfaces
- RS232,RS485,Ethernet
- Crucible Support Material
- Cast Alumina
- Maximum Operating Temperature
- 1400 °C
- Lid Opening Type
- Horizontal,parallel opening
- Lid Ventilation
- 50 mm diameter chimney
- Automation Level
- Available digital controllers and programmers
- Batch vs. Continuous Operation
- Batch
- Chamber Configuration
- Single or Twin chambers
- Timer
- 24 hour,7 day timer
- Abrasion resistance
- High resistance due to silicon carbide tiles
- Heat resistance
- Up to 1400 °C
- Corrosion resistance
- Zinc coated steel panels
- Thermal stability
- Refractory bricks and silicon carbide tiles
- Chemical resistance
- Silicon carbide elements provide chemical durability
- Chamber shape
- Single or dual
- Chamber size
- Up to SCF 48
- Material construction
- Heavy gauge hollow steel section,zinc coated sheet steel panels
- Heating elements
- Silicon carbide
- Interior lining
- Silicon carbide tiles
- Hearth construction
- Refractory bricks and silicon carbide tiles
- Lid type
- Horizontal,parallel opening with vented chimneys
- Crucible support
- Cast alumina supports
- Timer
- 24 hour,7 day timer
- Discharge method
- Top loading
- Digital controllers
- Available
- Multi-segment programmers
- Available
- Data loggers
- Available
- RS232 Communications
- Available
- RS485 Communications
- Available
- Ethernet Communications
- Available
