Seed conditioning and de-dusting system for lab use

When treating seeds, achieving precise de-dusting and curing is crucial for coating effectiveness and flow. This small-scale lab solution helps fine-tune your process for optimal performance in larger production lines.

Conditions, De-dusts, and Cures Seed Coatings

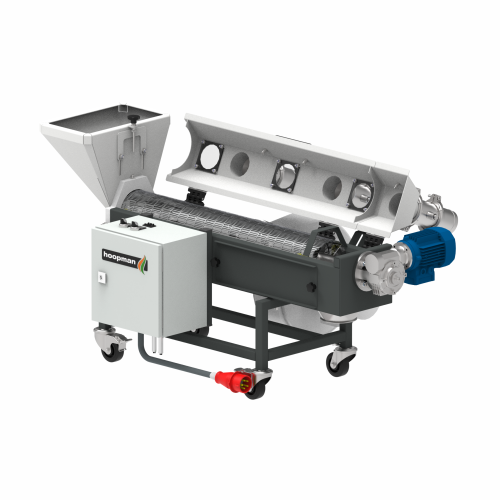

The RFBC140-LAB Rotary Fluid Bed Conditioner from Hoopman Equipment & Engineering is designed to enhance seed processing by integrating conditioning, de-dusting, and curing operations in a single, efficient system. It employs a fluidized bed principle, utilizing ambient air to ensure uniform treatment of seeds, ideal for developing treatment protocols on a lab scale.

This equipment is instrumental for seed producers and agricultural research institutions aiming to improve the adhesion and flow characteristics of crop coatings. Capable of processing between 50 to 150 kg per hour, depending on conditioning time, the RFBC140-LAB seamlessly integrates with existing treatment systems, ensuring enhanced product uniformity and reduced contamination risk.

Engineered for small-scale operations, the RFBC140-LAB is perfect for pilot and laboratory environments, offering adaptable integration with your current film-coating systems. The conditioner facilitates energy efficiency and consistent product quality, enabling better control over seed treatment processes, thus meeting the needs of modern agricultural and seed treatment industries.

Benefits

  • Enhances seed treatment efficacy with reliable de-dusting and curing.
  • Boosts seed flow characteristics, optimizing performance in packing lines and planters.
  • Facilitates integration and scalability from lab to industrial-scale processes.
  • Minimizes waste and contamination, ensuring environmentally friendly operations.
  • Streamlines protocol development for consistency across larger processing lines.

General


Applications
Crop coatings,Agricultural products,Seeds
End products
De-dusted seeds,Coated seeds,Treated seeds
Steps before
Seed Treatment,Film Coating,Application of Crop Protection Products
Steps after
Curing,Packing,Planter Loading
Input ingredients
treated seeds,crop protection products
Output ingredients
de-dusted seeds,cured seed coating
Market info

Technical Specifications


Capacity
50–150 kg/h
Conditioning method
Rotary fluid bed
Airflow method
Fluidised bed principle
Automation
Manual / integrated with existing system

Operating Characteristics


Working mechanism
Fluidised bed principle
Batch vs. continuous operation
Batch
Integrated steps
Conditioning and de-dusting
Automation level
Controllable and repeatable
Air incorporation control
Ambient air push through

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Application compatibility
Seed coating and curing
Seed treatment application
Film-coating integration

Physical Characteristics


Machine footprint
Compact
Capacity range
50–150 kg/hr
Discharge method
Fluidized bed with ambient air
Control panel type
Manual/Automated
Compact footprint
Designed for lab-scale use
Scalability
Develop protocols for larger systems

Custom Options


Compact footprint
Yes
Adaptability
Can be adapted to existing systems
