Rotary screening system for poultry processing

Optimize your processing line by seamlessly separating and dewatering chicken feathers, meat trimmings, and seafood waste with high precision and minimal maintenance.

Separates and Dewaters Poultry and Meat Byproducts

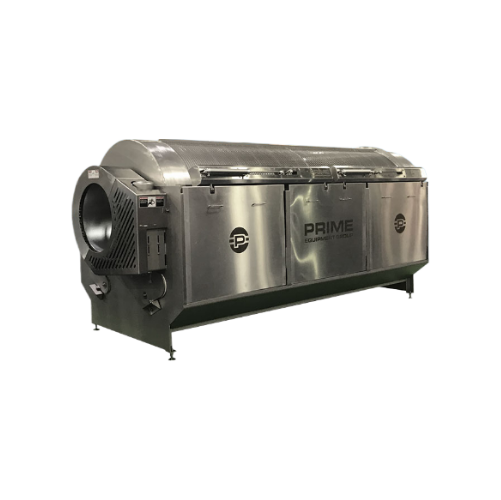

The Prime OFS, OMS, OSS Rotary Screening System from Prime Equipment Group is engineered to efficiently separate and dewater byproducts such as chicken feathers, poultry offal, and fish skin. Its stainless steel wedge wire drum is capable of handling solid and liquid products with continuous, high-speed operations. Designed for integration into processing plants, it utilizes a horizontal, internally fed design ensuring optimal performance in poultry, meat, and seafood processing environments.

The screening system is engineered with shock-absorbing drum wheels to eliminate greasing requirements and features a pneumatic traversing spray bar for maintenance-free operation. Its robust construction, sans tubular sections, ensures durability and low maintenance, complemented by a fast drum wheel replacement design.

Capable of managing up to 60 inches (152 cm) in drum diameter and lengths up to 12 feet (5.4 m), this system is ideal for food processing lines seeking energy-efficient water reuse, using variable frequency drives for precise motor control. Additionally, optional features such as automatic greasing and motorized traversing spray bars enhance operational efficiency, while the system’s compliance with food industry standards ensures smooth integration into existing operations.

Benefits

  • Enhances operational efficiency with continuous, high-speed processing.
  • Minimizes maintenance downtime with no-grease drum wheel system.
  • Facilitates easy integration with modular design and quick setup.
  • Promotes water reuse, reducing overall water consumption costs.
  • Supports environmental sustainability with efficient dewatering and solid-liquid separation.

General


Applications
Seafood,Meat,Poultry,Food industries
End products
Chicken feathers,Shrimp shells,Poultry offal,Meat trimmings,Fish skin,Pork rind
Steps before
Defeathering,Offal separation
Steps after
Water reuse,Further processing,Chilling,Proofing
Input ingredients
feathers,offal,meat,skin,solid materials,process water
Output ingredients
de-watered feathers,de-watered offal,de-watered meat,de-watered skin,excess process water removal
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Drum Diameter
Up to 60 inches (152 cm)
Drum Length
Up to 12 feet (5.4m)
Motor Power
3 hp
Electrical Requirements
230/460V,3 ph,60 Hz
Water Connection Size
3/4″ connections
Water Flow Rate
3.5 GPM
Water Pressure Range
30-50 PSI
Net Weight
1,500 lbs. (680 kg)
Pneumatic Traversing Spray Bar
Yes
Control Panel Type
VFD/soft-start,remote-mounted

Operating Characteristics


Working mechanism
Horizontally mounted,internally fed
Steps integrated
Screening,water removal
Automation level
VFD/soft-start control panel
Cleaning method
Pneumatic traversing spray bar assemblies
Operating mode
Batch / Inline Continuous

Material Compatibility


Cleanability
Easy washdown,no parts removal required
Biological compatibility
Stainless steel construction
Density/particle size
Designed for solid materials like feathers,offal,meat,skin

Product type Characteristics


Water reuse
Yes
Screening of solid materials
Feathers,offal,meat,and skin

Physical Characteristics


Machine footprint
12 feet length x 60 inches I.D.
Material
Stainless steel
Drum size
Up to 60 inches (152 cm) I.D.
Drum length
Up to 12 feet (5.4m)
Discharge method
Internally fed
Weight
1,500 lbs. (680 kg)
Spray bar assemblies
Pneumatic traversing
Shock-absorbing drum wheels
No greasing required
Stacking frame options
Available

Custom Options


Control panel type
Includes VFD/soft-start,remote-mounted option
Drum size customization
Up to 60 inches diameter,12 feet length
Stacking frame options
Available
Automated system options
Automatic Greasing System,Motorized Traversing Spray Bars
Drum access
Vertical removal from frame
