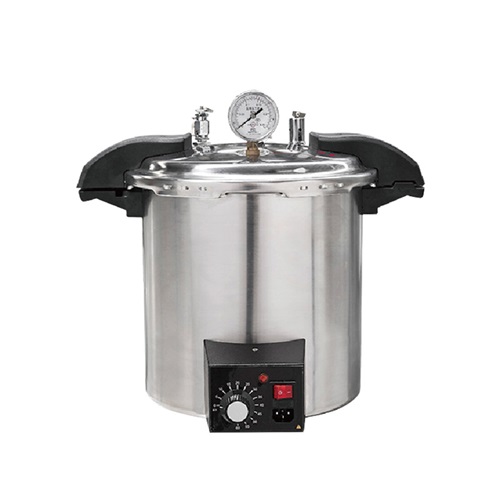

Portable autoclave for sterilizing surgical instruments

Ensure precision and safety in sterilizing surgical instruments, beddings, and glassware with advanced pressure steam technology, reducing contamination risks in medical settings.

Sterilizes and Pressurizes Medical Instruments and Equipment

The YXQG Series Portable Autoclaves from SHINVA are designed for precise sterilization tasks in the medical and laboratory sectors. This equipment employs pressure steam as a medium to thoroughly sterilize surgical instruments, beddings, and glassware, ensuring compliance with stringent health standards. The YXQG03B model utilizes microcomputer control and touch key operation, offering dynamic monitoring of the sterilization process through an LED digital display. It supports customized parameters for temperature, time, and pressure settings, which enhances versatility across various applications. Key safety features include an anti-dry burning device and automated pressure relief, protecting both users and materials. The electric heating variants like the YXQG02B feature manual water injection and efficient steam venting, ensuring uniform sterilization temperature. Crafted from durable 304 stainless steel, these autoclaves are built to resist corrosion and withstand high pressures. Furthermore, they offer reliable operation across diverse environments in the medical, healthcare, and laboratory industries, supported by SHINVA’s expertise in engineered-to-order sterilization solutions.

Benefits

  • Enhances sterilization efficiency with precise temperature control and customizable sterilization parameters.
  • Increases safety with automatic pressure release and over-temperature protection, minimizing risk during operation.
  • Saves time and labor with user-friendly microcomputer control and touch key operation.
  • Provides robust durability with corrosion-resistant 304 stainless steel construction, ensuring long-term reliability.
  • Offers flexibility for diverse sterilization needs in medical and laboratory environments, accommodating solid and liquid product types.

General


Applications
Beddings,Glassware,Medical units,Surgical instruments
End products
Surgical scalpels,Laboratory glass beakers,Sterilization trays,Hospital bed sheets
Steps before
Manual Water Filling,Preparation of Surgical Instruments,Preparation of Beddings,Preparation of Glassware
Steps after
Sterilization Monitoring,Packing,Cooling,Storage
Input ingredients
surgical instruments,beddings,glassware,pressure steam,water
Output ingredients
sterilized surgical instruments,sterilized beddings,sterilized glassware,sterilization waste steam
Market info
Shinva is known for manufacturing medical equipment, including sterilization and disinfection devices, radiotherapy products, and diagnostic imaging systems, demonstrating expertise in healthcare solutions and a strong reputation for quality in the medical industry.

Technical Specifications


Chamber Material
304 Stainless steel
Working Pressure
0.142 Mpa
Max Working Temperature
126°C
Control System
Microcomputer control with touch key
Display
LED digital display
Automation
Automatic control of temperature,heating,sterilization,and steam venting
Safety Devices
Automatic over-temperature protection,safety valve for pressure relief,short-circuit protection,over-pressure protection
Water Filling,Drainage
Manual
Steam Venting
Automatic steam venting device
Door Safety
Interlock device

Operating Characteristics


Automation level
Microcomputer control
Safety features
Door safety interlock,over-temperature protection
Steam venting
Automatic,Manual
Temperature control
Precise with sensor
Pressure relief
Automatic pressure valve
Water management
Manual filling and drainage
Over-pressure protection
Automatic

Material Compatibility


Abrasion resistance
Stainless Steel
Biological compatibility
Medical instruments
Cleanability
Easy to clean surfaces
Corrosive resistance (e.g. acids)
Resistant to common sterilization chemicals
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact
Chamber Material
304 Stainless steel
Control panel type
Touch key
Discharge Method
Automatic steam venting
Shape
Vertical cylindrical
Capacity
Not specified
Weight
Not specified

Custom Options


Control panel type
Microcomputer control,touch key
Integration possibilities
User-configurable parameters
Pressure Control
Automatic pressure relief safety valve
Heating System
Stainless steel electric heating tube
