Pine nut threshing system

Efficiently separate pine nuts from cones without damage, streamlining your nut processing operations with high-speed, continuous performance that supports large-capacity production lines.

Separates and Shells Pine Nuts from Cones

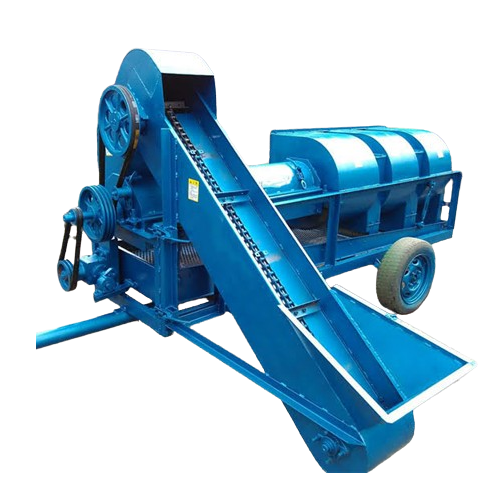

The 5TS-80 Pine Nut Threshing Machine is designed by Zhengzhou Taizy Machinery Co., Ltd to streamline the extraction of pine nuts from cones efficiently. This machine operates by using a robust spindle and drum system to thresh and separate pine nuts, minimizing manual labor. It is ideal for applications in nut and food processing industries, particularly focusing on Lebanese pine nuts for producing kernels, oil, flour, and snacks. With multiple power options, including electric, diesel, and gasoline engines, it offers a throughput capacity of up to 400 kg/h. The machine’s automatic, high-speed operation integrates seamlessly into continuous production lines. Featuring durable construction and multiple models with two-pass and three-pass screening, it ensures thorough cleaning and separation of pine nuts. Its compact, easy-to-operate design supports integration with tractors for field operations and offers variable transmission modes tailored to different processing needs.

Benefits

  • Enhances operational efficiency by streamlining the separation and shelling of pine nuts.
  • Reduces labor costs and manual handling with automatic and continuous processing.
  • Offers versatility with multiple power options, including integration with tractors for ease of movement.
  • Ensures high throughput of up to 400 kg/h, supporting large-scale production needs.
  • Provides reliable quality with minimal damage to pine nuts during processing.

General


Applications
Nuts,Lebanese pine nuts,Pine nuts
End products
Pine nut snacks,Pine nut flour,Lebanese pine nut kernels,Pine nut oil,Pine nut kernels
Steps before
Manual pine cone collection,Transporting pine cones to processing facility
Steps after
Screening and cleaning separated pine nuts,Sorting and packing pine nuts for distribution
Input ingredients
pine cone,immature pine cone
Output ingredients
pine nut,threshed pine nut,separated pine nut
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Power (KW)
11.0
Diesel engine (hp)
15
Dimension (mm)
3000*800*1200
Net weight (kg)
350
Shaft rotary speed (r/min)
800
Fan rotary speed (r/min)
800
Rotary drum type
Nail teeth type
Drum diameter (mm)
310
Drum length (cm)
80
Concave type
Grid type and round hole type
Fan type
Horizontal type
Fan diameter (mm)
φ600
Capacity (kg/h)
400

Operating Characteristics


Working Mechanism
Pine nut threshing and separating
Automation Level
Manual / Tractor-connected
Energy Source
Electric motor / Diesel engine / Gasoline engine
Screening Options
Two-pass / Three-pass
Threshing Efficiency
High
Output Capacity
400 kg/h
Operation Method
Continuous
Integration Steps
Feeding,Threshing,Screening

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
3000 mm x 800 mm x 1200 mm
Drum diameter
310 mm
Drum length
80 cm
Feed method
Feed hopper
Discharge method
Screening and cleaning

Custom Options


Control panel type
Analog / Digital
Motor Type
Electric / Diesel / Gasoline
Screening Options
Two-pass / Three-pass
Traction Capability
Tractor Compatible
