Pharmaceutical powder and granule metal detection system

Ensure the integrity of your pharmaceutical and nutraceutical products by detecting and eliminating metal contaminants during powder and granule processing, enhancing product safety and compliance with regulatory standards.

Detects and Inspects Metal in Powders and Granules

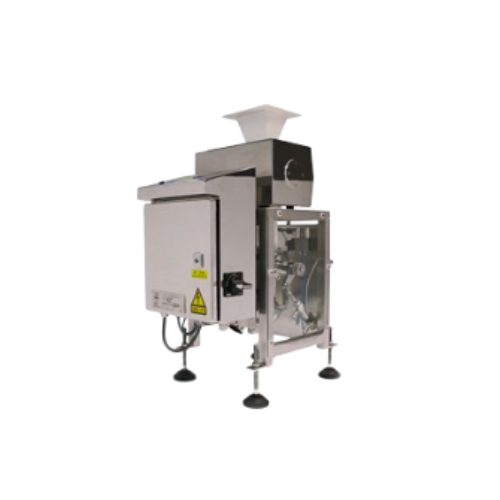

The Insight VF PH from Loma Systems is a precision-engineered pharmaceutical metal detection system, specifically designed to inspect powders and granules. Equipped with a Direct Digital Signal (DDS) vector display, this system ensures optimal product set-up and diagnostic accuracy. It’s GMP compliant, featuring a mirror-polished finish that eliminates dust traps, and comes with full IQ, OQ & PQ validation documents. With a throughput capacity of up to 3000 kg per hour, this system automatically calibrates for product effect and loose materials, storing up to 200 pre-sets for efficient operation. Constructed from 304 and 316 polished stainless steel, it excels in harsh environments with an IP66 washdown rating, and offers multiple reject options including Wash in Place (WIP), making it ideal for continuous, automated pharmaceutical and nutraceutical production lines. Ethernet and USB capabilities ensure seamless integration and data management, enhancing operational efficiency while maintaining compliance with stringent quality standards.

Benefits

  • Enhances product safety by precisely detecting metal contaminants in pharmaceutical powders and granules.
  • Streamlines production with automated set-up and calibration, storing up to 200 product presets for rapid changeover.
  • Reduces cleaning time and contamination risk with an easy-to-clean, GMP-compliant design.
  • Facilitates seamless integration into existing systems with Ethernet and USB connectivity.
  • Withstands rigorous operational conditions, thanks to its robust construction and IP66 washdown capability.

General


Applications
Nutraceuticals,Pharmaceutical powders,Granules,Pharmaceuticals
End products
Over-the-counter powdered medications,Mineral supplement powders,Vitamin supplement powders,Protein supplements,Herbal supplement granules,Tablet manufacturing granules,Capsule filling powders,Pharmaceutical excipients
Steps before
Powder Blending,Granulation
Steps after
Quality Control,Packaging
Input ingredients
powders,granules,pharmaceutical products,nutraceutical products
Output ingredients
inspected powders,inspected granules,metal-free pharmaceutical products,metal-free nutraceutical products
Market info
Loma is known for manufacturing industrial inspection equipment, specializing in metal detection, checkweighing, and X-ray inspection systems, widely used in the food, pharmaceutical, and packaging industries for quality control and ensuring product safety and compliance.

Technical Specifications


Throughput
Up to 3000 kg/h
Display Type
DDS Vector Display
Setup Storage
200 different pre-sets
Material of Construction
304,316 mirror polished stainless steel
Operating Temperature Range
-10 to +40 °C (14 to 95 °F)
Humidity Range
0 to 95% Relative Humidity (Non-condensing)
IP Rating
IP66
Power Supply Voltage
85 to 265 V,single phase 50/60Hz,neutral,earth
Power Consumption
20 VA
Detection Type
Metal
Automation
Auto Learn for setup
Ethernet Capability
Yes
USB Capability
Yes
PVS Enabled
Yes (Sample Test)
Frequency
Single Frequency
Setup Time
Simple and fast set-up with Auto Learn

Operating Characteristics


Working mechanism
Direct Digital Signal (DDS) vector display
Integrated steps
Auto Learn set-up
Automation level
Automatic set-up and storage
Cleaning method
Easy to clean and maintain
Batch vs. continuous operation
Continuous

Material Compatibility


Cleanability
Easy to Clean
Biocompatibility
GMP Compliant
Corrosive resistance (e.g. acids)
316 Stainless Steel
Density/particle size
Powders and Granules


GMP Compliance
Yes
IQ,OQ,PQ Validation
Yes

Physical Characteristics


Machine Footprint
N/A
Feed/Discharge Method
Vertical Fall
Material of Construction
304 mirror polished stainless steel with 316 mirror polished stainless steel reject
IP Rating
IP66

Custom Options


HMI Type
DDS Vector Display
