Overhauled tea bag packaging system for black tea

Streamline your tea packaging line with this high-speed solution, designed to efficiently produce heat-sealed, single-chamber tea bags in various shapes, catering to evolving consumer preferences while ensuring sustainable packaging options.

Packs Heat-Sealed Single-Chamber Tea Bags

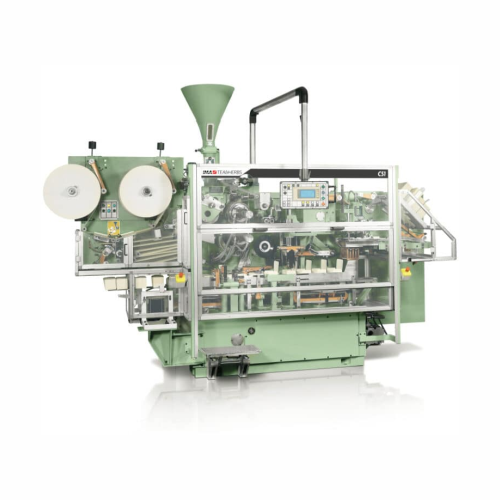

The C51 Overhauled from IMA Group is a specialized tea bag packaging machine designed for high-speed production of heat-sealed, single-chamber tea bags. It excels in producing square, round, and rectangular tea bags without string and tag, reaching speeds of up to 2,000 bags per minute. This machine integrates seamlessly into your packaging line, featuring a complete overhaul that includes disassembly, washing, mechanical control, and repainting, ensuring like-new performance. With a total installed power of 7.5 kW and an automatic lubrication system, the C51 is engineered for continuous operation while minimizing energy consumption. It accommodates sustainable packaging materials, supporting your eco-friendly initiatives. The machine is also available for customization, offering full overhaul or partial revision options to meet your specific requirements.

Benefits

  • Maximizes production efficiency by packaging up to 2,000 tea bags per minute.
  • Offers reliable performance comparable to new machines through IMA's thorough overhaul process.
  • Supports sustainable packaging initiatives with eco-friendly material compatibility.
  • Minimizes downtime and production losses with quick revision options and buy-back agreements.
  • Reduces maintenance costs with automatic and centralized lubrication.

General


Applications
Black tea,Tea,Beverages,Herbal tea
End products
Square tea bags,Rectangular tea bags,Heat-sealed single-chamber tea bags,Round tea bags
Steps before
Tea leaves blending,Weighing,Forming tea mass
Steps after
Tea bag packaging,Cartoning,Case packing,Palletizing
Input ingredients
black tea,sustainable packaging materials,compressed air
Output ingredients
heatsealed single-chamber bags,square bags,round bags,rectangular bags
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Machine speed
Up to 2,000 bags/minute
Bag capacity
Up to approximately 28.4 grams of black tea
Total installed power
7.5 kW
Compressed air
6 bar,75 Nl/min
Air supply connection
Ø 3/8 gas
Lubrication system
Automatic and centralized
Machine net weight
Max 4,200 Kg
Bag type
Heat-sealed,single-chamber without string and tag
Package shape
Square,round,or rectangular bags

Operating Characteristics


Machine speed
Up to 2,000 bags/minute
Automation level
PLC-controlled
Batch vs. continuous operation
Batch
Energy efficiency
Depends on thermic groups
Cleaning method
Manual
Changeover time
Depending on overhaul type

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Bag type
Single-chamber

Physical Characteristics


Machine footprint
Not specified
Machine shape
Cuboidal
Feed/discharge method
Automatic
Bag type produced
Square/Round/Rectangular
Control panel type
Updated electrical panel
Lubrication system
Automatic and centralized
