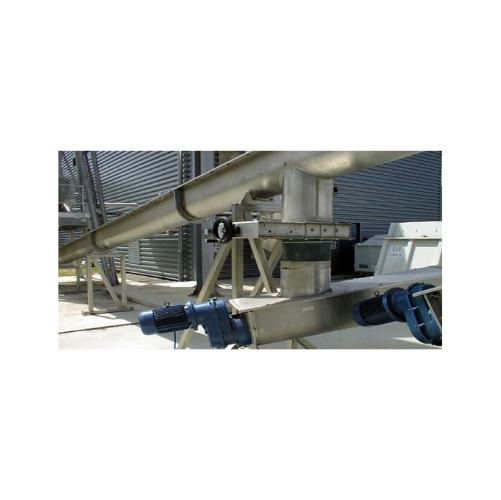

Overflow spillway filter for wastewater treatment

Effectively manage overflow wastewater with this advanced filtration system, designed to ensure uninterrupted screening and conveying of waste solids to optimize treatment efficiency and maintain environmental safety.

Screens and Conveys Overflow Solids

The Overflow Spillway VSE from SAVECO features a semicircle perforated plate filter and integrated spiral conveyor, uniquely designed for screening overflow wastewater in municipal and industrial applications. It operates automatically when water levels rise, efficiently filtering solids with a rotating spiral that cleans the filter and conveys debris to the outlet. This equipment is commonly applied in municipal wastewater, fruit and vegetable processing, and plastics recycling, producing treated water and processed sludge. Available in sizes ranging from 300 to 700 mm, with perforation options of 6 to 8 mm, it supports lengths up to 12 meters. Built with corrosion-resistant 304L or 316L stainless steel, it seamlessly integrates into existing plants with minimal installation effort.

Benefits

  • Enhances water quality management with efficient overflow screening and solid removal.
  • Minimizes maintenance downtime through an automated self-cleaning spiral system.
  • Seamlessly integrates into current infrastructure, reducing installation complexity.
  • Offers flexibility with customizable sizes and configurations for varied applications.
  • Ensures long-term operational reliability with durable stainless steel construction.

General


Applications
Vegetable processing waste water,Animal by-products handling,Industrial waste water treatment,Industrial solid waste handling,Processing,Sludge treatment,Clean water treatment,Plastics recycling industry waste water,Municipal waste water treatment,Fruit
End products
Treated industrial wastewater,Recycled plastic water,Treated fruit processing water,Potable clean water,Treated vegetable processing water,Processed animal by-products,Managed industrial solid waste,Processed sludge,Treated municipal wastewater
Steps before
Wastewater Collection,Level Detection
Steps after
Screening Removal,Solid Waste Conveying,Overflow Water Disposal
Input ingredients
overflow water,waste water,solids
Output ingredients
screened water,filtered water,conveyed solids
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Filter Type
Semicircle perforated plate
Sizes Available
300 / 500 / 700 mm
Opening Sizes
6 / 7 / 8 mm
Length
1 to 12 m
Material
304L / 316L Stainless Steel
Automation
Automatic operation with level sensor
Cleaning Method
Rotating spiral with wear-proof polymer brushes
Installation
On side edge of overflow channels
Motor Protection
Alternative options available

Operating Characteristics


Automation level
Automatic operation
Batch vs. continuous operation
Inline Continuous
Cleaning method
Automatic cleaning with spiral
Overflow treatment
Yes

Physical Characteristics


Filter Type
Horizontal semicircle perforated plate
Material
304 L / 316 L Stainless Steel
Spiral Included
Yes
Size Options
300 / 500 / 700 mm
Opening Sizes
6 / 7 / 8 mm
Length Range
1 to 12 m
Drive Unit
Included

Custom Options


Control panel type
Available
Installation location
Top of overflow channel
Alternative voltage and frequency
Optional
Alternative degree of motor protection
Optional
