Occ screen for separating large cardboard
Efficiently separate large cardboard from mixed waste streams to streamline your recycling operations and eliminate manual sorting, ensuring high throughput and minimal maintenance downtime in high-speed, automated environments.
Separates Cardboard and Paper from Mixed Waste

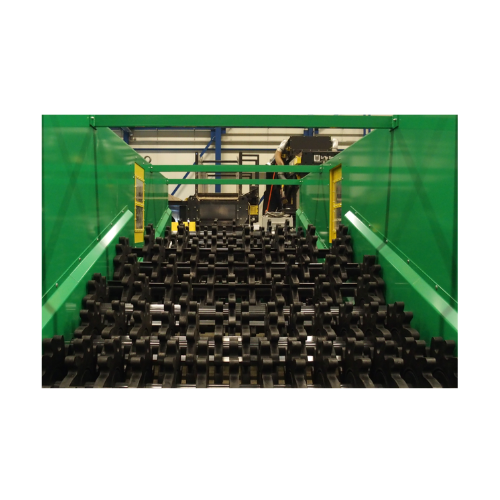

The Lubo OCC Screen from Bollegraaf is designed to enhance recycling operations by efficiently separating large cardboard from mixed waste streams. This equipment employs a unique screening deck consisting of axles with 660mm-diameter rubber stars, which utilize differences in material size and rigidity to effectively separate cardboard from smaller items like paper. It’s particularly suited for applications in recycling, waste management, municipal solid waste, and construction and demolition sectors, producing end products such as large cardboard sheets and OCC bales. Operating with high-speed, continuous automation, the Lubo OCC Screen minimizes manual sorting through the use of its patented Quick Disconnect design, allowing fast maintenance which reduces downtime and operational costs. The system is energy efficient, employing variable speed control via frequency transformers to optimize throughput and screen size adaptability. Its seamless integration into existing sorting installations makes it a versatile choice for pre-processing and environmental departments within recycling facilities and waste management companies.
Benefits
- Increases sorting efficiency by automatically separating large cardboard, minimizing manual labor.
- Reduces maintenance time to minutes with the Quick Disconnect system, boosting uptime.
- Optimizes energy usage through variable speed control, lowering operational costs.
- Enhances process flexibility with adjustable screen settings to match material throughput demands.
- Supports continuous high-speed operation, fitting seamlessly into large-scale recycling workflows.
- Applications
- Paper and cardboard waste,Construction and demolition (c,Single stream waste,Municipal solid waste (msw),D)
- End products
- Recycled cardboard pellets,Recovered paper,Old corrugated cardboard (occ) bales,Large cardboard sheets,Mixed paper packs
- Steps before
- Feeding,Loading
- Steps after
- Sorting,Material Handling
- Input ingredients
- large cardboard,paper,small cardboard,small materials,material flow
- Output ingredients
- separated large cardboard,screened paper,screened small materials
- Market info
- Bollegraaf is known for manufacturing advanced recycling equipment and systems. With a strong reputation for innovation and quality, they specialize in engineered-to-order solutions, optimizing waste processing efficiency and sustainability for diverse industries globally.
- Screen size
- Determined by star size,interval,and speed
- Star diameter
- 660 mm
- Automation
- High level of automation
- Maintenance system
- Quick Disconnect System
- Operational cost
- Low
- Energy consumption
- Low
- Speed setting
- Variable speed using frequency transformers
- Uptime
- High uptime
- Working mechanism
- Rubber star axles for separation
- Automation level
- High (frequency transformer control)
- Changeover time
- Minutes (Quick Disconnect system)
- Energy efficiency
- Low (low energy consumption)
- Cleaning method
- Easy maintenance
- Screen size adjustment
- Variable speed and size (frequency transformer)
- Batch vs. continuous operation
- Continuous
- Cardboard compatibility
- Yes
- Paper compatibility
- Yes
- Small material compatibility
- Yes
- Density/particle size compatibility
- Variable
- ISO Standards Compliance
- ISO 9001
- Screening deck
- OCC screen
- Star diameter
- 660mm
- Feed method
- Double setting of stars
- Screening size
- Adjustable by star size,interval,and rotation speed
- Discharge method
- Material falls over the screen
- Screening size
- Adjustable via star size,interval,and rotation speed
- Speed control
- Variable speed using frequency transformers
- Maintenance system
- Quick Disconnect System
- Feed system configuration
- Double setting of stars
