Nozzle separators for chemicals and minerals

Optimize your chemical and mineral processing with precise, continuous separation and high-speed clarification, ensuring consistent concentrate quality and efficiency in your production line.

Continuously Separates and Clarifies Chemical and Mineral Solutions

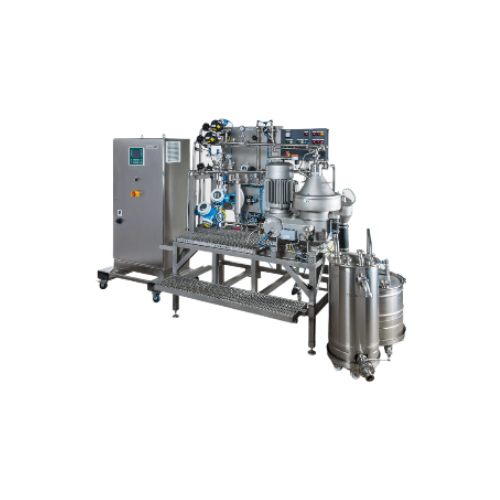

The GEA Nozzle Bowl Separator is a centrifugal separator specifically engineered for chemical and mineral processing, offering unparalleled precision in separation and clarification. This disk-type bowl separator features nozzles at the periphery for continuous discharge, efficiently processing catalysts, phosphoric acid solutions, and mineral concentrates. Designed for high-speed, continuous operations, it integrates seamlessly into existing production lines. With adjustable nozzle diameters and throughput capacity, it provides versatile concentration options. The separator is constructed from high-grade materials like super austenite and Inconel 625, ensuring optimal corrosion resistance and longevity. Automated through advanced PLC systems, it allows for remote monitoring and process adjustments, boosting productivity while reducing energy consumption. Ideal for chemical producers and mineral processing companies, it supports operational efficiency and high product purity.

Benefits

  • Enhances yield and product purity through continuous, high-speed separation.
  • Reduces maintenance costs with erosion-resistant materials and construction.
  • Optimizes energy efficiency with variable throughput capacity adjustments.
  • Integrates easily with existing systems for seamless operation and monitoring.
  • Supports diverse applications, including catalyst recovery and phosphoric acid production, with customizable configurations.

General


Applications
Chemicals,Phosphoric acid,Catalyst recovery,Minerals
End products
Catalysts,Chemical solutions,Phosphoric acid solutions,Mineral concentrates
Steps before
Grinding,Emulsification,Purification
Steps after
Packing,Coating
Input ingredients
catalyst,phosphoric acid,feed concentration
Output ingredients
concentrate,separated solids,clarified products
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Bowl Type
Disk-type
Nozzle Type
Peripheral nozzles
Concentration Adjustment
Through nozzle exchange and throughput regulation
Material Options
Super austenite,super duplex,Inconel 625
Erosion Protection
Available
Automation
Standardized and tailor-made solutions

Operating Characteristics


Working Mechanism
Continuous discharge through nozzles
Integrated Steps
Clarification with centrifugal force
Disk Stack Clarification
Acceleration by vanes
Flow Type
Continuous
Concentration Adjustment
Exchangeable nozzles,adjustable throughput
Gravity Discharge
Concentrate flows off under gravity
Erosion Protection
Super austentite,super duplex,Inconel 625
Safety and Yield
High product quality and yield

Material Compatibility


Abrasion resistance
High
Corrosive resistance (e.g. acids)
Super austentite,super duplex,Inconel 625
Cleanability
Easy with proper materials
Density/particle size
Variable,based on application

Physical Characteristics


Nozzle type
Peripheral discharge
Bowl type
Disk-type bowl
Material
Super austentite,Super duplex,Inconel 625
Concentration adjustment
Nozzle exchange,Throughput regulation
