Manure decanter for nutrient separation

Transform livestock manure into valuable resources by efficiently separating and extracting nutrients, producing eco-friendly soil amendments and renewable energy feedstock, while reducing environmental impact.

Separates and Extracts Nutrients from Slurry

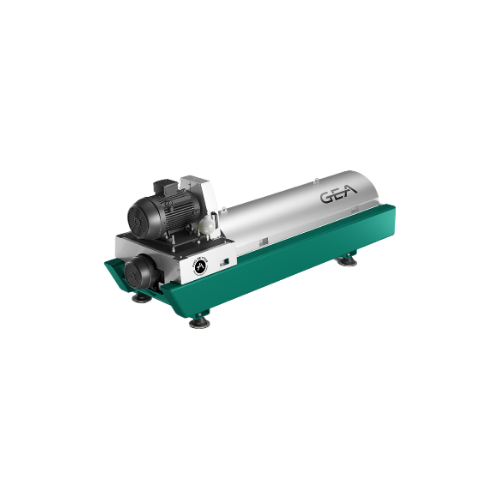

The GEA Manure Decanter is an advanced separation solution custom-engineered for efficient nutrient extraction and recycling in agricultural and environmental sectors. Utilizing a robust decanting system, it continuously processes livestock manure and industrial sludge into valuable by-products like liquid fertilizers and renewable energy feedstocks. This equipment boasts a separation efficiency of up to 40% nitrogen and 70% phosphate without requiring chemical additives, thanks to its high g-force operation and adjustable bowl speed controlled via a PLC system. Engineered for plug-and-play integration, it simplifies installation with low space requirements and features the energy-efficient GEA summationdrive® for optimal torque management. Available in both mobile and modular configurations, this decanter centrifuge is well-suited for varied applications, from wastewater treatment to biosolid management, ensuring compliant, eco-friendly operations with reduced lifecycle costs.

Benefits

  • Enhances nutrient recycling while reducing environmental impact with chemical-free separation.
  • Minimizes energy costs by up to 60% with efficient motor control.
  • Facilitates swift integration and mobility between sites with plug-and-play design.
  • Offers customizable configurations to meet specific processing demands.
  • Delivers high separation efficiency to maximize resource recovery.

General


Applications
Agricultural fertilizer,Fermentation residues,Biosolids,Environmental conservation,Industrial sludge,Sewage sludge,Wastewater treatment,Livestock manure,Nutrient recycling
End products
Composted manure pellets,Treated effluent,Organic soil enhancers,Hygienic liquid fertilizer,Dried biosolids granules,Eco-friendly soil amendments,Renewable energy feedstock,Nutrient-rich irrigation water
Steps before
Collection of manure,Transportation to processing site,Storage of raw manure
Steps after
Nutrient extraction,Fertilizer production,Resource recovery,Energy generation
Input ingredients
livestock manure,sewage sludge,liquid manure,fermentation residues
Output ingredients
recyclable resource,energy,reusable material,hygienic fertilizer,dewatered solid particles,treated nutrient surpluses
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Separation Efficiency Nitrogen (N)
40%
Separation Efficiency Phosphates (P2O5)
70%
G-force Application
High
Chemical Requirement
No chemicals required
Filtration System
No filtration system
Space Requirement
Minimum (m3/h per m2)
Automation
PLC-controlled
Bowl Speed
Adjustable
Differential Control
Automatic via VFD
Installation Type
Mobile unit option
Energy Consumption
Lowest
Torque Measurement
Automatic
Speed Control
GEA summationdrive®
Modular Design
Yes
Energy Savings
15 to 60 percent
Secondary Motor
Inline,no belts
Performance
High
Lifecycle Costs
Low

Operating Characteristics


Separation Efficiency
40% N,70% P2O5
Automation Level
PLC-controlled
Flow Type
Continuous
Integrated Steps
Dewatering,Thickening
Cleaning Method
No Filtration System
Space Requirement
m3/h per m2
Energy Efficiency
Low energy consumption
Configuration Flexibility
Customizable,Mobile

Material Compatibility


Biological compatibility
Yes
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
Resistant
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Minimum space requirement (m³/h per m²)
Control panel type
PLC controlled
Bowl speed
Adjustable
Customization options
Customizable machine configuration
Mobile unit capability
Can be built on a mobile unit
Discharge method
Automatic differential control via VFD

Custom Options


Control panel type
PLC-controlled
Mobile unit configuration
Available
Machine configuration
Customizable
Integration possibilities
Plug,play
Bowl speed control
Adjustable via VFD
Differential speed control
Automatic via VFD
