Macro hardness tester for industrial applications
Achieve precise hardness measurements with ease, as this advanced testing machine provides rapid and reliable results, seamlessly integrating into your production line to improve quality control and streamline material testing processes.
Measures Macro Hardness in Industrial Materials

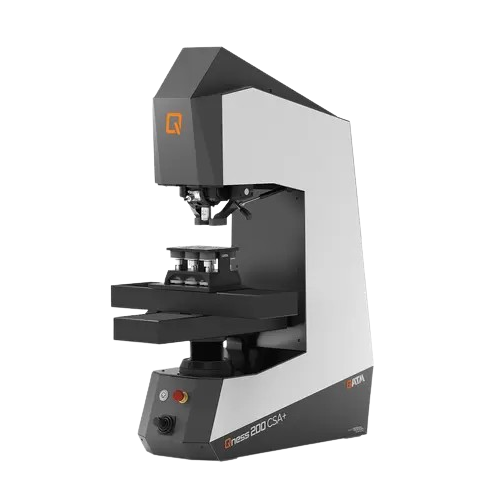

The Qness 200 CSA+ from ATM Qness GmbH is a fully automated macro hardness tester designed to offer precise measurement capabilities. It features a robust welded steel frame, ensuring durability under demanding industrial conditions. This equipment is equipped with an advanced optical system and a color camera for reliable, reproducible results, ideal for industries like automotive, aerospace, and metallurgy.
The Qness 200 CSA+ operates via an automatic XY slide system, allowing high precision in repeated and progression tests. It supports a wide test force range from 0.5 kg to 187.5 kg, employing electronic force application and closed-loop control for accuracy. Integrated with Qpix Control 2 software, it facilitates seamless operation, offering features like automatic height adjustment and contactless exploration.
Applications include testing steel alloys, titanium aerospace parts, and engineered components such as gear teeth and welded seams. The system’s flexibility makes it suitable for testing in quality control departments and R&D laboratories. Its 5-position tool changer and rapid indenter change mechanism streamline operations, reducing downtime and increasing productivity.
Energy efficiency is enhanced through a high-performance induction motor that optimizes workpiece clamping, while material options ensure versatility in test environments. The Qness 200 CSA+ guarantees precise hardness evaluation, crucial for maintaining material integrity in heat-treated and mechanical components.
Benefits
- Ensures consistent material quality with precise hardness measurement.
- Increases productivity through rapid indenter changes and a 5-position tool changer.
- Minimizes manual intervention with fully automated operation and electronic force control.
- Adaptable to various industrial applications with a wide test force range.
- Enhances operational efficiency with advanced, user-friendly software integration.
- Applications
- Metallurgy,Automotive components,Mechanical testing,Industrial manufacturing,Component quality control,Aerospace components,Heat-treated materials,Material testing,Weld testing
- End products
- Steel alloys,Industrial machinery components,Heat-treated steel,Engine blocks,Automotive axles,Structural beams,Mechanical springs,Aluminum components,Titanium aerospace parts,Aerospace fasteners,Welded seams,Gear teeth,Cast iron parts,Metal casings
- Steps before
- Sample preparation,Fixing samples on mounting devices,Grinding,Polishing
- Steps after
- Analysis and documentation,Sample imaging and report generation,Data export and integration,Report printing
- Input ingredients
- test samples,workpieces,embedded samples,weld samples,grinding plates
- Output ingredients
- hardness measurement data,test reports,2D/3D hardness charts,calculated fracture length,material-graphics analysis
- Market info
- QATM is renowned for its expertise in manufacturing high-quality metallographic equipment and consumables, providing innovative solutions for material testing and analysis, which are trusted by laboratories and quality control professionals globally.
- Test force range
- 0.5 - 187.5 kg
- Tool positions
- 5 (toolchanger)
- Test height
- 140 mm
- Throat depth
- 238 mm
- Test table size
- 180 x 200 mm
- Traverse path
- X 220 / Y 220 mm
- Max. workpiece weight
- Unlimited
- Weight of basic device
- 174 kg
- Camera system
- 5 MP ethernet industrial standard
- Operating system
- Windows 10 IoT
- Hard drive
- 128 GB SSD
- Lenses
- XLED 2,XLED 5,5x,10x,20x,50x,100x
- Field of view
- 0.113 x 0.084 mm (100x) to 4.24 x 3.18 mm (XLED2)
- Test sequence
- Fully automated / electronic force application
- Automation
- Fully automatic 3-Axis Control
- XY slide
- Automatic with high-precision positioning drive
- Height adjustment
- Motorized
- Clamp mechanism
- Swivelling downholder clamp,play-free roller-bearing spindle guide
- Power supply
- Industrial color camera with Ethernet data transfer
- Automation level
- Fully Automatic
- Test cycle
- Fully automated test cycle
- 3-axis control
- Automatic
- Height adjustment
- Automatic height adjustment
- Control interface
- External PC with Qpix Control 2 software
- Automation Progressions
- Automatic XY slide
- Test head design
- Optimized
- Indenter Changing system
- Tool-free quick-release
- Changeover time
- Rapid indenter changing
- Clamping system
- Swiveling Downholder
- Workspace illumination
- LED lighting
- Test method change-over
- Faster with 5-position tool changer
- Abrasion resistance
- Brinell and Vickers standards
- Corrosive resistance (e.g. acids)
- Welded steel frame
- Density/particle size
- Suitable for various material hardness up to 187.5 kgf
- Biological compatibility
- 0
- Cleanability
- 0
- Machine footprint
- Compact
- Test force range
- 0.5 - 187.5 kg
- Throat depth
- 238 mm
- Test table size
- 180 x 200 mm
- Max workpiece weight
- Unlimited
- Test height adjustment
- Motorized
- Weight of basic device
- 174 kg
- Frame material
- Welded steel
- Control panel type
- External PC
- Integration Possibilities
- Qpix Control 2 Software
- Machine Versions
- Two
- Clamping Elements
- Configurable
- Indenter Changing System
- Tool-free
