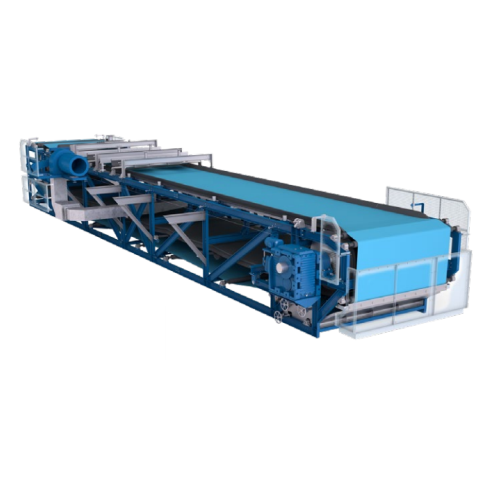

Lifting device for vacuum boxes on Hvbfs

Eliminate manual handling risks and reduce maintenance downtime with a specialized lifting solution for vacuum boxes, making high-risk tasks faster and safer while seamlessly integrating into your horizontal vacuum belt filtering process.

Lifts and Lowers Vacuum Boxes Safely

The SmartLIFT lifting device from ANDRITZ SEPARATION offers a safe and efficient solution for vacuum box maintenance on Horizontal Vacuum Belt Filters (HVBFs). This pneumatic lifting system eliminates the hazards associated with manual handling equipment, featuring a bellow-supported frame for secure lifting and lowering of vacuum boxes. Ideal for industries such as pulp, paper, metals, and environmental operations, SmartLIFT significantly reduces downtime and labor input by automating a traditionally high-risk task. Its retrofit capability for any brand ensures seamless integration into existing lines, and with no pivoting points, it promises low maintenance demands. SmartLIFT also enhances operational safety by reducing injury risk by 50% and streamlining human-machine interactions.

Benefits

  • Reduces vacuum box maintenance downtime by over 30%, boosting overall operational efficiency.
  • Lowers manpower requirements with streamlined pneumatic lifting, enhancing productivity.
  • Minimizes risk of injury, enhancing worker safety during vacuum box handling.
  • Easily retrofitted to existing equipment, offering versatile integration across brands and models.
  • Promotes stable maintenance operations with a low-maintenance design, improving reliability.

General


Applications
Vacuum boxes,Horizontal vacuum belt filters,Separation technologies
End products
Food additives,Industrial sludge,Chemical slurries,Mineral concentrates,Clay suspensions,Wastewater solids,Pulp fiber,Metallurgical sludges,Pharmaceuticals
Steps before
Manual lifting equipment setup,Winch positioning,Lever adjustment
Steps after
Vacuum box maintenance,Reassembly of vacuum box,Return to operation,Safety inspection
Input ingredients
vacuum box,horizontal vacuum belt filter,labor for maintenance
Output ingredients
maintenance time reduction,enhanced safety,reduced downtime
Market info
ANDRITZ is known for its expertise in supplying industrial ETO equipment and services, specializing in sectors like pulp and paper, hydropower, and metals. It has a strong reputation for innovation and engineering excellence.

Technical Specifications


Application Compatibility
Any Horizontal Vacuum Belt Filter (HVBF)
Retrofit Capability
Any brand or size of HVBF
Automation
Pneumatically operated
Downtime Reduction
Over 30%
Safety Improvement
Reduces injury risk by 50%
Maintenance Requirement
Low,no pivoting points
Load Adjustment
Centralizes vacuum box
Bellow Support Frame
Pneumatically lifted

Operating Characteristics


Working mechanism
Pneumatic bellow-supported lift
Batch vs. continuous operation
Batch
Automation level
Reduction in manual operation
Changeover time
Reduced by over 30%
Safety enhancement
Transforms high-risk to low-risk task
Retrofitting capability
Can be retrofitted to any brand or size of HVBF

Physical Characteristics


Discharge method
Pneumatic / manual
Machine weight capacity
Varies by model
Retrofitting capability
Compatible with all HVBF brands and sizes

Custom Options


Control panel type
Pneumatic control system
Integration possibilities
Retrofittable to any HVBF brand or size
Compact footprint
Yes
Discharge method
Pneumatically adjustable bellow-supported frame
