Lemon sorting and grading system

Optimize lemon processing by accurately sorting and grading citrus fruits to enhance product quality and reduce labor costs.

Sorts and Grades Lemons with Precision

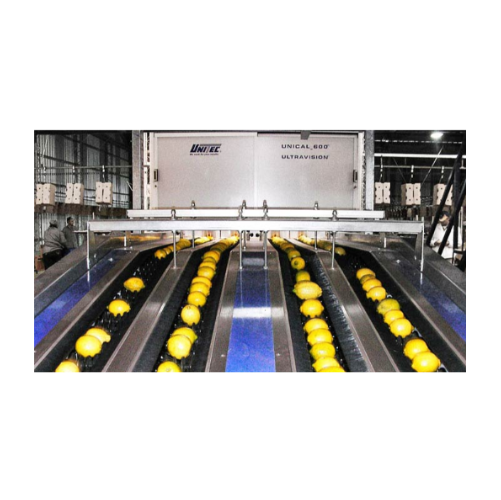

The LEMON VISION 3 from Unitec is an optical sorting system designed for the precise sorting and grading of lemons. This equipment leverages advanced defect detection technology to identify external imperfections, customizing quality selection based on market demands. LEMON VISION 3 seamlessly integrates into citrus processing lines, handling up to 12 fruits per second per sorting lane for high-speed, continuous operation. Particularly suitable for food processing plants and citrus producers, it enhances efficiency by replacing manual inspection, reducing labor costs, and ensuring consistent product quality. The system supports diverse applications, from fresh lemons to lemon-based food ingredients, and can be adjusted for varying levels of defect detection. Built with robust materials, it ensures durability and long-term performance in agriculture and food processing environments.

Benefits

  • Ensures product uniformity by accurately detecting external defects.
  • Increases operational efficiency with high-speed processing of up to 12 fruits per second.
  • Reduces labor costs by automating the quality selection process, reducing dependence on manual inspection.
  • Customizable defect detection adapts to varying market quality standards.
  • Enhances profitability by improving product quality and marketability.

General


Applications
Vegetables,Fruits,Citrus fruits
End products
Lemon juice,Pre-packaged lemon wedges,Fresh lemons,Lemon essential oil,Lemon slices for beverages,Lemons for industrial culinary use,Citrus salad packs,Lemon-based food ingredients,Lemon zest
Steps before
Harvesting,Washing,Sorting
Steps after
Packaging,Distribution,Quality Assurance Testing
Input ingredients
lemons
Output ingredients
sorted lemons,graded lemons,processed lemons
Market info

Technical Specifications


Processing Capacity
Up to 12 fruits/sec per sorting lane
Detection Type
Electronic optical system
Automation
LEMON VISION 3 Unitec Technology
Defect Detection
External defects
Quality Selection Customization
Adjustable for each market,defect type
Cost Reduction
Reduced quality selection costs

Operating Characteristics


Automation level
Unitec Technology / Electronic Optical System
Sorting speed
Up to 12 fruits/sec per sorting lane
Quality selection customization
Market-specific,adjustable defect detection
Cost savings
Reduced manual labor
Productivity
High sorting and color selection capacity
Detection system
LEMON VISION 3 Technology

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact modular design
Feed method
Automatic roller transport system
Discharge method
Automated sorting lanes
Control panel type
Digital touchscreen interface
Detection type
Vision system for defect detection
Processing speed
Up to 12 fruits/sec per sorting lane
