Laboratory water purification system

Achieve consistent water purity with a flexible and modular system designed to meet high-volume laboratory demands, ensuring precise results in analytical and life science applications.

Purifies and Recirculates Laboratory Water

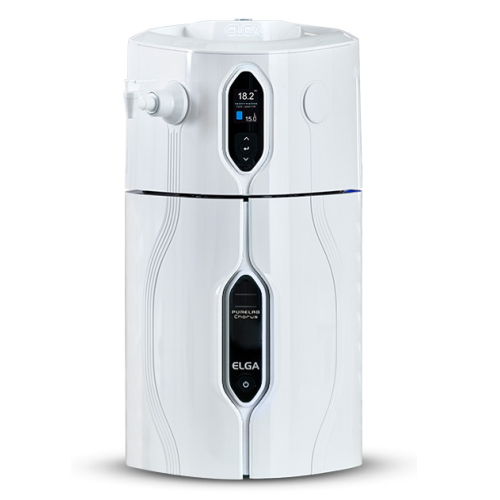

The PURELAB Chorus 2+ from ELGA LabWater is a water purification system designed for high-demand laboratories needing consistent, ultrapure water. This system stands out with its fully recirculating design, ensuring consistent peak water quality for applications such as electrochemistry, cell cultures, and spectrophotometry. The system employs reverse osmosis and electrodeionization to efficiently remove impurities, producing up to 480 liters of water per day with a purity of >15 MΩ.cm. Its modular and stackable design allows for flexible installation in diverse lab environments, optimizing space. With user-friendly data capture capabilities, it supports easy system performance validation and software updates, while its low maintenance requirements make it a practical choice for busy laboratory settings. The system also offers options for customization in terms of dispensers and reservoir capacities, making it adaptable to specific laboratory needs.

Benefits

  • Ensures consistently high water purity for precise analytical and life science applications.
  • Enhances productivity with reduced maintenance times due to quick consumable replacements.
  • Optimizes laboratory space with its modular and stackable design.
  • Minimizes contamination risk with continuous water recirculation and high bacteria rejection rates.
  • Offers flexibility with adjustable dispenser and reservoir configurations to meet specific lab needs.

General


Applications
Cell cultures,Electrophysiology,Electrochemistry,Life science applications,General chemistry,Microbiological analysis,Analytical applications,Spectrophotometry,Media/buffer preparation
End products
Dna sequencing results,Protein quantification assays,Chemical reagents,Bacterial culture samples,Electrophysiological recordings,Cultured cells,Analytical test samples,Prepared media solutions,Electrolyte solutions
Steps before
Water Filtering,Water Softeners
Steps after
Media/buffer preparation,Feed to ultrapure water systems
Input ingredients
tap water,potable water,raw water
Output ingredients
Type II+ pure water,15 MΩ.cm pure water,pure water for laboratories,Type II water,10 MΩ.cm water,analytical and life science applications water,pure water for electrochemistry,pure water for cell cultures,pure water for spectrophotometry,ultrapure water feed,buffer preparation water,general chemistry water
Market info

Technical Specifications


Water Resistivity
1 to >15 MΩ.cm,10 to >15 MΩ.cm
Organics (TOC)
<10 ppb
Bacteria Level
<0.001 CFU/ml
PH
Effectively neutral
Particle Rejection
>99% rejection
Daily Usage (max)
240 l/day,480 l/day,220 l/day,440 l/day
Daily Usage (min)
1 l/day,10 l/day
Delivery Flow Rate
10 l/hr,20 l/hr
Consumable Impurities Removed
Inorganic Compounds,Microorganisms,Bacteria,Dissolved Gases,Organic Compounds
Life Expectancy (Consumables)
3–18 months,4-5 years
Reservoir Capacity
15–100 liters
Reservoir Flow Rate
6–10 l/min
UV Light Wavelength
254 nm

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Energy efficiency
0.5–2 kWh/kg moisture
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Capacity
15 liters / 30 liters / 60 liters / 100 liters
Dimensions
660 (h) x 376 (w) x 340 (d) mm (30 l)
Dimensions
570 (h) x 532 (w) x 522 (d) mm (60 l)
Dimensions
806 (h) x 532 (w) x 522 (d) mm (100 l)
Dimensions
470 (h) x 376 (w) x 340 (d) mm (15 l)
Flow Rate
6 l/min (15 l) / 8 l/min (30 l) / 10 l/min (60 l,100 l)
Modular Design
Stackable and space-saving
Dispenser Type
Halo Flexible / Halo Advanced / Dispenser
Control Panel Type
Drop-by-drop control / Locked dispense
Handset Type
Fixed / Flexible
Independence of Dispenser
Can sit independently and be installed in adjacent labs
Purity Monitoring
To point-of-use

Custom Options


Modular Design
Stackable,Wall-mounted,Under-bench
Dispenser Configuration
Fixed,Flexible,Advanced
Installation Flexibility
Adjacent Lab Installation
Data Connectivity
USB for System Performance Validation
