Labeling and assembly for disposable syringes

Ensure precise labeling and assembly of disposable syringes with a compact, continuous-motion system that integrates seamlessly into high-speed pharmaceutical production lines.

Labels and Assembles Disposable Syringes

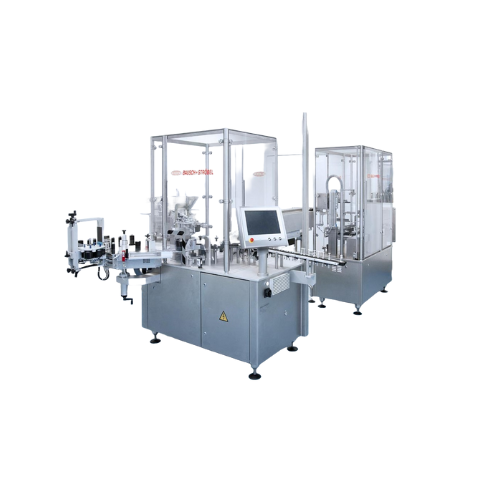

The ESS 1001 from Bausch+Ströbel is an engineered-to-order machine designed for the precise labeling and assembly of disposable syringes within pharmaceutical and medical device production lines. Specializing in continuous-motion operations, the ESS 1001 efficiently applies self-adhesive labels and inserts plunger rods into syringes, achieving outputs of up to 4,000 items per hour. This compact machine integrates all electrical, electronic, and PLC components to save space on the production floor. Its modular label dispenser accommodates both intermittent and continuous-motion printing systems, enhancing flexibility and reliability. Primarily used for pre-filled insulin syringes, vaccines, and emergency medication kits, the ESS 1001 ensures consistent labeling accuracy and gentle container handling, aided by a series of optional inspection and print-check systems. Designed to integrate seamlessly with upstream or downstream processes, its customizable features include various printer types, label verification systems, and automated rejection of misapplications, supporting compliance with GMP and FDA standards.

Benefits

  • Ensures high accuracy in labeling and assembly, reducing error rates and rework.
  • Enhances production efficiency with a throughput of up to 4,000 syringes per hour.
  • Minimizes floor space usage due to its compact, integrated design.
  • Provides operational flexibility with modular configurations and optional inspection systems.
  • Supports compliance with industry standards, ensuring product safety and regulatory adherence.

General


Applications
Disposable syringes,Medical devices,Syringes,Labeling,Pharmaceuticals
End products
Allergy medication syringes,Heparin syringes,Vaccines in disposable syringes,Pre-filled insulin syringes,Antibiotic syringes,Disposable syringe kits with safety features,Injectable pain management syringes,Emergency adrenaline syringes
Steps before
Syringe nest unpacking,Tray unpacking
Steps after
Packing,Inspection,Sterilization
Input ingredients
disposable syringes,self-adhesive labels,plunger rods
Output ingredients
labeled syringes,syringes with inserted plunger rods
Market info
Bausch Stroebel specializes in manufacturing high-quality pharmaceutical packaging and processing machinery, renowned for their precision, reliability, and innovation in filling and packaging lines for the pharmaceutical industry. They are respected for tailored solutions and advanced engineering.

Technical Specifications


Output
up to 4,000 items/h
Container diameter
6 - 20 mm
Syringes
0.5 - 10 ml
Automation
Continuous-motion
Design
Highly compact
Label dispenser design
Modular
Set-up time
Short
Operation
Easy and centralized
Container transport
Gentle

Operating Characteristics


Working mechanism
Continuous motion
Automation level
PLC-controlled
Integrated steps
Labeling and plunger rod insertion
Changeover time
Short
Batch vs. continuous operation
Continuous
Cleaning method
Manual/CIP-compatible
Compact design
Yes
Space-saving integration
All components integrated

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container diameter
6 - 20 mm
Syringe volume
0.5 - 10 ml

Physical Characteristics


Control panel type
Easy and centralized operation
Integration
All electrical,electronic,and PLC components integrated

Custom Options


Integration possibilities
Options for interlinking with machines upstream or downstream
Control panel type
Easy and centralized operation
Additional checking devices
Optional extras like label code scanner,printers,print check system
Service portal vision system
Cleanroom compatible
Label dispenser enhancement
Pressure relief station,reject discharge for faulty containers
Labeling variations
Label-on-container checks for luminescent or non-luminescent labels
