Knife peeling machine for potatoes and root vegetables
Effortlessly achieve smooth, peel-free vegetables with minimal waste, enhancing your processing line’s efficiency for products like French fries, salads, and stews.
Peels and Rotates Root Vegetables Efficiently

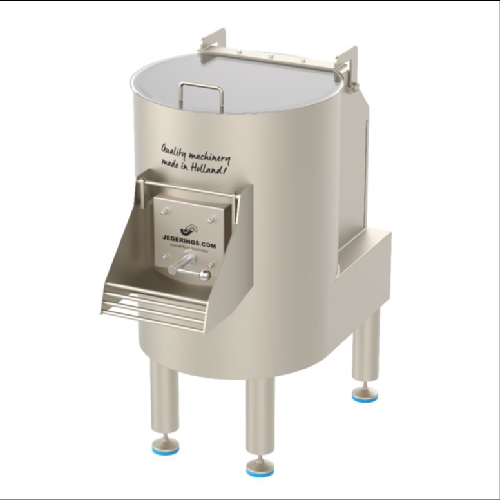

The Knife Peeling Machine MSM-20, engineered by Jegerings.com, is a robust stainless steel solution for efficiently peeling potatoes and other root vegetables. Its unique design features a removable peeling disc equipped with 15 long and 15 short knives, which, combined with hygienic rubber skin, ensure a smooth peel with minimal loss. Ideal for food processing and agriculture industries, it prepares vegetables for varied applications such as French fries and stews. Operating in batch mode, the MSM-20 manages 15-20 kg per cycle, within 1-5 minute cycles, using 1.1 kW power. Its integration into pre-processing lines is seamless, and its stainless steel construction ensures durability and ease of maintenance.
Benefits
- Delivers smooth, uniformly peeled vegetables, enhancing product quality for end-use in various applications.
- Minimizes peel loss and bruising, optimizing raw material utilization and reducing waste.
- Simple maintenance and cleaning with stainless steel construction and removable components.
- Accommodates various root vegetables, providing versatility in food processing operations.
- Boosts productivity with efficient cycle times and batch processing capabilities.
- Applications
- Celeriac,Potatoes,Vegetables,Kohlrabi,Root vegetables
- End products
- Kohlrabi slices for stir-fry,Diced root celery for soups,Potatoes for french fries,Vegetable medley mix for stew,Potato salad cubes
- Steps before
- Sorting,Washing
- Steps after
- Quality Inspection,Packing
- Input ingredients
- potatoes,celeriac,kohlrabi,root vegetables
- Output ingredients
- peeled potatoes,peeled celeriac,peeled kohlrabi,smoothly peeled vegetables
- Market info
- The Food Machinery Company Ltd. is known for manufacturing bespoke food processing equipment, like conveyors and mixers, offering engineering expertise for industrial-scale food production, backed by a reputation for quality and tailored solutions in the UK and international markets.
- Dimensions
- 595 x 750 x 1050 mm
- Height of entrance
- 990 mm
- Height of exit
- 500 mm
- Electrical data
- 3 Ph / 400 V / 50 Hz / 1.1 kW / 2.7 A
- RPM
- 205 RPM
- Weight
- 125 kg
- Capacity
- 15 – 20 kg/cycle
- Cycle time
- 1 – 5 min
- Working Mechanism
- Rotating peeling disc with knives
- Batch vs. Continuous Operation
- Batch
- Cycle Time
- 1–5 min
- Automation Level
- Manual
- Changeover Time
- N/A
- Abrasion resistance
- Stainless steel construction
- Biological compatibility
- Food-grade stainless steel
- Cleanability
- Easy to clean due to smooth surfaces
- Corrosive resistance (e.g. acids)
- High resistance due to stainless steel
- Product Type
- Potatoes,Celeriac,Kohlrabi
- Footprint Dimensions
- 595 x 750 x 1050 mm
- Material
- Stainless Steel
- Weight
- 125 kg
- Height of Entrance
- 990 mm
- Height of Exit
- 500 mm
- Peeling Disc Type
- Removable with 15 long and 15 short knives
- Turning Rubbers
- Three solid turning rubbers
- Peeling disc type
- Removable
- Knife configuration
- 15 long and 15 short peeling knives
- Turning rubbers
- Three solid turning rubbers
