Kieselgur filter for wine and lees
Enhance clarity and purity in your beverage filtration process with a system designed to efficiently handle large volumes of liquid with minimal solids, ensuring rapid operation and maintaining product quality.
Filters and Brightens Liquids for Winemaking and Beverages

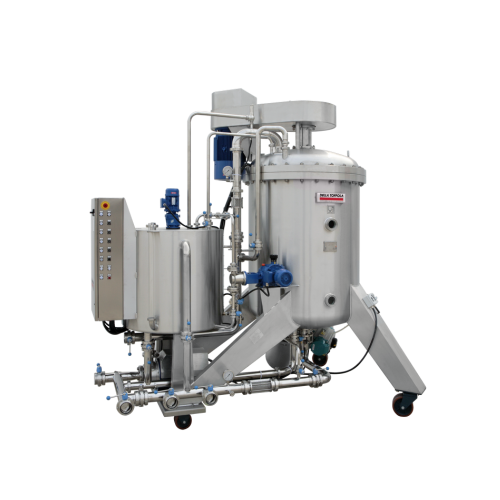

The NF automatically discharged kieselgur filter from Della Toffola is engineered for efficient filtration and brightening in winemaking and beverage production. The unique horizontal disk system maintains filter cake integrity, even during process interruptions, and ensures rapid throughput with minimal solids retention. Ideal for high-volume applications like white wine, red wine, and craft beers, this filter delivers clear, high-quality end-products through continuous, high-speed operation. Its centrifugal cake discharge simplifies cleaning and maintenance, while all AISI 304 stainless steel construction ensures durability and compliance with the 97/23/EC PED standards. This system supports integration into automated lines with easy servicing for uninterrupted production.
Benefits
- Enhances product clarity and quality with precision filtration.
- Reduces cleaning and maintenance time with automated cake discharge.
- Improves line efficiency by maintaining operations even during process interruptions.
- Ensures long-term durability and compliance with stainless steel construction.
- Streamlines integration into existing automated production lines.
- Applications
- Beverages,Sugar solutions,Beer,Wine
- End products
- Fruit juice concentrates,Sugar syrups,Craft beer,Lager beer,Red wine,Ale beer,Soft drinks,White wine,Sparkling wine
- Steps before
- Crushing,Fermentation,Racking
- Steps after
- Brightening,Finishing,Storage,Bottling
- Input ingredients
- wines,lees,sugar solutions,concentrates,liquid with low solids,beverages
- Output ingredients
- filtered wine,filtered lees,bright wine,clear sugar solutions,clear beverages
- Market info
- Della Toffola is renowned for its expertise in designing and manufacturing industrial equipment for the wine-making, beverage, and food processing industries, providing customized, high-quality engineered-to-order solutions with a strong reputation for innovation and reliability.
- Automation
- Automatically discharged
- Material
- AISI 304 stainless steel
- Compliance
- 97/23/EC PED
- Filtration type
- Kieselgur filtering
- Capacity
- 5 to 50 m²
- Operation
- Horizontal disk system
- Working Mechanism
- Horizontal disk kieselgur filter
- Automation level
- Automatically discharged
- Batch vs. Continuous Operation
- Batch
- Filter cake management
- Centrifugal discharging
- Cleaning method
- Quick and easy cleaning
- Maintenance Optimization
- Structurally designed for quick servicing
- Integration Steps
- Brightening and finishing processes
- Corrosive resistance (e.g. acids)
- AISI 304 stainless steel,acid-proof epoxy-based paint
- Cleanability
- Quick and easy cleaning due to centrifugal discharging
- Abrasion resistance
- AISI 304 stainless steel
- Product type
- Wines,Lees,Sugar solutions,Beer
- Machine footprint
- 5 to 50 m²
- Material
- AISI 304 stainless steel
- Discharge method
- Centrifugal discharging
- Filter system type
- Horizontal disk kieselgur
- Control panel type
- Manual / Automatic
- Discharge method
- Automatic centrifuge discharge
- Material
- AISI 304 stainless steel
- Protective Coating
- Acid-proof epoxy-based paint
