Inline digital printing system for pharmaceutical packaging

Enhance packaging precision and compliance with cutting-edge inline digital printing, ensuring high fidelity in colors and reducing validation risks for continuous pharmaceutical production.

Prints and Inspects Continuous Web Packaging Materials

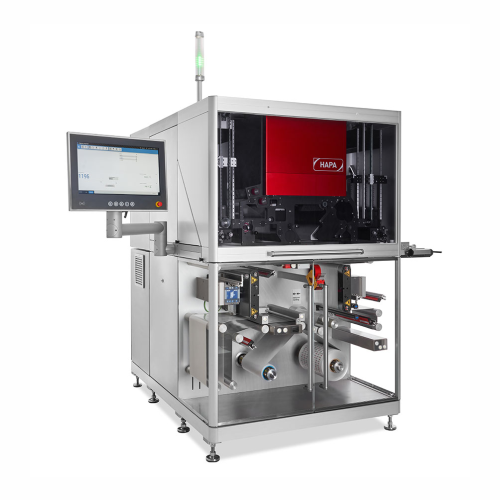

The Web 4.0 5D from HAPA offers a cutting-edge solution for pharmaceutical and healthcare packaging needs, combining inline digital printing with meticulous inspection capabilities. This system excels in multi-color printing on diverse substrates like blister packs, strip packs, Tyvek pouches, and aluminum lidding foils. It operates on a continuous web, providing precise control through a pdf-based workflow, which minimizes artwork errors and integration challenges. With a max printing speed of 54 meters per minute and resolutions up to 600 dpi, it ensures high-quality outputs. Its GMP-compliant design features Hapa’s OptiMate HMI for simplified operations and Hiflow technology for reduced ink waste and environmental impact. Fully equipped for Industry 4.0, the Web 4.0 5D supports serialization and registered printing, with additional options like mechanical integration with packaging machines and corona pre-treatment for enhanced print adhesion. It adheres to stringent standards, accompanied by comprehensive validation documentation, ensuring smooth implementation in pharmaceutical environments.

Benefits

  • Streamlines validation efforts and reduces project risk with integrated printing and inspection workflows.
  • Enhances operational flexibility with roll-to-roll, top-mounted, or standalone configurations.
  • Decreases installation time while maintaining high-speed production.
  • Reduces environmental impact through efficient ink supply and minimized waste.
  • Ensures compliance with pharmaceutical industry regulations, supporting GMP standards.

General


Applications
Continuous web packaging materials,Otc products,Healthcare packaging,Pharmaceutical packaging
End products
Tyvek sterilization pouches,Otc medication sachets,Pharma-grade trays,Strip packs for capsules,Aluminium lidding foils,Blister packs for tablets,Healthcare device covers
Steps before
Material Loading,Corona Pre-treatment,Pre-print Control
Steps after
Product Inspection,Packing,Serialization
Input ingredients
roll-fed materials,continuous web packaging materials,aluminium lidding foil,paperback aluminium foil,tyvek,aluminium laminates
Output ingredients
printed packaging,CMYK full color printed materials,registered printed products,serialized packaging
Market info
HAPA, part of the Coesia Group, is renowned for its expertise in developing and manufacturing high-quality inline printing solutions, specifically for the pharmaceutical packaging industry, offering flexibility and customization for complex printing needs.

Technical Specifications


Resolution
600 dpi
Max printing speed
54 m/min
Max printing width
360 mm
Max printing length
500 mm
Max web width
370 mm
Min advance length
30 mm
Min web width
40 mm
Machine depth
1880 mm
Machine height
2035 mm
Machine length
1300 mm
Machine weight
1500 kg
Max advance length
500 mm

Operating Characteristics


Automation level
PLC / Digital Workflow
Batch vs. continuous operation
Inline Continuous
Changeover time
Reduced by integrated system
Cleaning method
Manual / Reduced maintenance
Energy efficiency
Optimized through Hiflow system

Material Compatibility


Substrates
Aluminium lidding foil,Paperback Aluminium foil,Tyvek,Aluminium Laminates


GMP Compliance
Yes
FDA Compliance
Yes
Industry 4.0 Ready
Yes

Physical Characteristics


Machine depth
1880 mm
Machine height
2035 mm
Machine length
1300 mm
Machine weight
1500 kg

Custom Options


HMI type
OptiMate
Control architecture
Hapa Move,GMP pharma-compliant machine control
Product inspection system
Vision Secure
Workflow system
HPPS (pdf-based workflow)
Ink supply system
Hiflow,active circulated ink supply system
Configuration options
Roll-to-roll (R),on a stand (S),top-mounted (T)
Integration to packaging machine
Mechanical integration and digital interface
