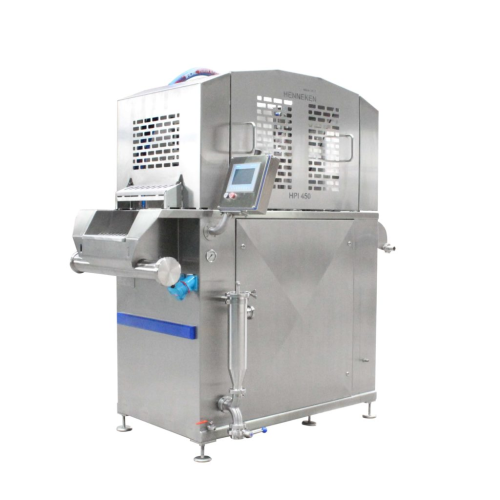

Injector for bone-in and boneless meat products
Optimize your brining and injection processes with precise and adaptable equipment designed for both bone-in and boneless meat, poultry, and vegan products, ensuring consistent quality and efficient operation throughout your production line.
Injects and Homogenizes Brine into Food Products
The HPI series from Henneken offers precision-engineered brine injectors designed for the food processing industry, including meat, poultry, fish, and vegan products. Utilizing a robust industrial design, these injectors operate on a forced injection system controlled by a stripper plate, ensuring high injection precision. Available with varying working widths from 300 mm to 1000 mm, the series caters to different production scales, including small, medium, and large capacities. With adjustable brine pressure ranging from 0.5 to 4 bar and stroke speeds up to 90 strokes per minute, these injectors allow for customized processing settings that enhance product consistency and quality.
The HPI’s engineering emphasizes seamless production line integration, supported by features like servo-controlled transport belts for easy connection to existing systems, including IQF lines for frozen products. The injectors accommodate easy cleaning and maintenance with foldable hoods and removable stainless steel racks. The pneumatic spring needles, available in multiple sizes, offer tool-free removal to suit diverse product requirements.
Energy efficiency is achieved through the use of a frequency converter-driven centrifugal pump, reducing operational costs while maintaining performance integrity. Made from top-quality stainless steel, the HPI series ensures durability and resistance to food processing environments, complemented by optional features such as a double pipe heat exchanger and anti-sedimentation unit. The HPI series is a versatile solution for modern food processing applications, offering customization and efficient performance.
Benefits
- Enhances product consistency and flavor with precise brine injection control.
- Saves time and reduces labor with easy-to-clean, tool-free maintenance design.
- Adapts to various production scales and needs through customizable settings and options.
- Minimizes operational costs with energy-efficient, frequency converter-driven pump.
- Offers flexible integration into existing production lines, including IQF connections.
- Applications
- Meat products,Fish products,Poultry products,Vegan meat substitutes
- End products
- Salmon fillets,Chicken breasts,Plant-based burger patties,Turkey slices,Ham,Vegan sausages,Bacon
- Steps before
- Meat preparation,Brine mixing,Product selection,Initial cleaning
- Steps after
- Packaging,Cooling,Storage,Further processing,Quality inspection
- Input ingredients
- bone-in meat,boneless meat,small poultry parts,fish,vegan meat substitutes,brine
- Output ingredients
- injected bone-in meat,injected boneless meat,injected poultry parts,injected fish,injected vegan meat substitutes
- Market info
- Henneken Tumbler is known for manufacturing high-quality tumbling and marinating equipment for the meat processing industry, recognized for innovative designs and reliable performance in enhancing food flavor and texture.
- Working Width
- 300 mm,350 mm,450 mm,650 mm
- Brine Pressure
- 0.5 – 4 bar
- Stroke Speed
- 15 – 55 strokes per minute
- Stroke Height
- 200 mm
- Transport System
- Transport belt
- Advance per Stroke
- 15/30,30/60,41/82,115/230 mm
- Needle Quantity
- 24,50,102,108,167,160,243,435,630,968
- Connection Power
- 2,8,11,18,30,35 kW
- Length
- 1,510 mm,1,920 mm,2,090 mm,2,570 mm,3,200 mm
- Width
- 700 mm,1,140 mm,1,400 mm,1,670 mm,1,550 mm,1,750 mm,1,530 mm
- Height
- 1,930 mm,2,050 / 2,370 mm,2,200 mm,2,250 mm
- Weight
- 380 kg,460 kg,1,400 kg,1,600 kg,1,700 kg,1,900 kg,2,240 kg
- Needle Size
- 4,3,2.5,1.9 mm
- Automation level
- PLC / Touch Panel
- Batch vs. continuous operation
- Batch / Inline Continuous
- Cleaning method
- Easy maintenance and cleaning with foldable hood
- Injection suitability
- Bone-in and boneless products
- Needle adjustability
- Pneumatic springed needles with stepless adjustment
- Pressure adjustment
- Stepless from 0.5 to 4 bar
- Speed adjustment
- 15 to 55 strokes per minute
- Transport system
- Walking beam and transport belt options
- Injection precision
- High precision controlled by stripper plate
- User friendliness
- Display interface with frequency converter
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Material Type
- Meat / Poultry / Fish
- Compatibility with vegan products
- Yes
- Machine footprint
- Length
- Machine weight
- 380-2,240 kg
- Working width
- 300,350,450,650,1,000 mm
- Transport system
- Transport belt
- Stroke height
- 40-230 mm
- Customizable needle size
- 1.9,2.5,3,4 mm
- Transport method
- Walking beam system
- Material
- Stainless Steel
- Control panel type
- Touch Panel
- Stripper with height setting
- Yes
- Control Panel Type
- Touch Panel
- Integration Possibilities
- IQF Line Connection
- Brine Pool Option
- Available
- Antisedimentation Unit
- Available
- Double Pipe Heat Exchanger
- Available
- Transport System
- Walking Beam / Transport Belt
