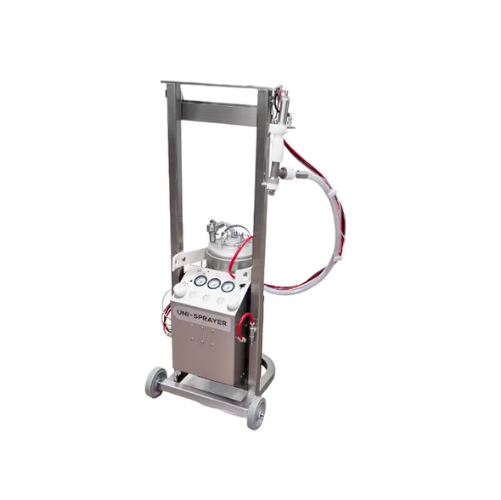

Industrial food spraying and flocking system

Reduce waste from single-use canisters in food production while achieving precision spraying for a variety of liquids and particulates with our portable and flexible solution.

Sprays and Flocks Diverse Product Coatings

The Uni-Sprayer from Unifiller Systems is an environmentally friendly, versatile solution designed for all your spraying and flocking needs. Engineered to handle various liquids, solids, and slurries, it excels in applying coatings of pan release oils, egg washes, sauces, and even pharmaceutical formulations. The Uni-Sprayer features a food-grade, light, and flexible braided hose, coupled with interchangeable tips for different spray patterns and products. Its compact, portable design with a 5-gallon pressurized tank allows for easy integration into existing production lines, making it invaluable for processing and final conditioning in food, cosmetics, and pharma industries. Operators benefit from its ease of use, requiring no tools for operations, while its air filtration system supports clean application. Additionally, with its ability to handle particulates up to 1mm using an optional flocker nozzle, it’s a robust choice for both spraying and flocking, ensuring efficient application even in challenging production environments.

Benefits

  • Enhances uniformity in product coating, improving overall product quality and consistency.
  • Increases efficiency by reducing waste and minimizing the use of single-use aerosol canisters.
  • Simplifies cleaning and maintenance processes with easy washdown capabilities, minimizing production downtime.
  • Offers flexibility in application with interchangeable tips for different products and patterns, adapting to various production needs.
  • Facilitates quick integration into existing production lines, streamlining operations and increasing production capacity.

General


Applications
Food,Sauces,Pet food,Cosmetics,Condiments,Baking,Pharma,Simple syrups,Fillings
End products
Syrup glaze for pastries,Mayonnaise dressing,Egg wash coatings,Milk coating,Tomato sauce for pizzas,Barbecue sauce glaze,Confectionery gel fillings,Honey simple syrup,Cosmetic cream bases,Pharmaceutical liquid formulations,Mustard squeeze packs,Natural pet food coatings,Pan release oils,Fruit jams
Steps before
Mixing Ingredients,Adjusting Viscosity,Product Preparation
Steps after
Flocking,Packing,Cooling
Input ingredients
pan release oil,egg wash,milk,simple syrups,jams,fillings,sauces
Output ingredients
sprayed pan release oil,sprayed egg wash,sprayed milk,sprayed simple syrups,sprayed jams,sprayed fillings,sprayed sauces,flocked bread,flocked wraps with condiments and sauces
Market info
Unifiller Systems is known for manufacturing innovative and precise food processing and bakery equipment, specializing in automated portioning and depositing solutions that enhance efficiency and consistency for bakeries and food production lines globally.

Technical Specifications


Speed
Operator Dependent
Deposit Range
Dependent on Tank Pressure and Product's Viscosity
Particle Size
Handles particulates up to 1mm with optional flocker nozzle
Air Power
100 psi (6.9 Bar)
Container Capacity
5 US Gallon (19 L) pressurized tank
Cleaning Method
Easy Washdown
Tools Required
No tools required

Operating Characteristics


Cleaning method
Easy Washdown
Automation level
Operator Dependent
Particle size handling
Up to 1mm
Batch vs. continuous operation
Batch
Air incorporation control
Use with or without atomizing air

Material Compatibility


Cleanability
Easy to clean
Biological compatibility
Food grade
Corrosive resistance (e.g.,acids)
Yes
Density/particle size
Handles particulates up to 1mm

Product type Characteristics


Particle Size
Up to 1mm with optional Flocker Nozzle
Spraying and Flocking
Pan Release Oil,Egg Wash,Milk,etc.

Physical Characteristics


Compact footprint
Yes
Tank size
5 US Gallon (19 L)
Mobile frame
Yes
Portability
Compact,portable,easy-to-use
Braided hose
Light and flexible
Interchangeable tips
Yes

Custom Options


Hose Type
Food grade light and flexible braided hose
Nozzle Options
Interchangeable tips
Nozzle Size
Handles particulates up to 1mm
Frame Type
Mobile frame with enclosed pneumatics
Air System
Use with or without atomizing air
