Industrial belt vegetable cutting solution

Effortlessly handle large volumes of diverse vegetables with precise cutting capabilities, enhancing efficiency and quality in your processing line.

Slices, Dices, and Shreds Vegetables Efficiently

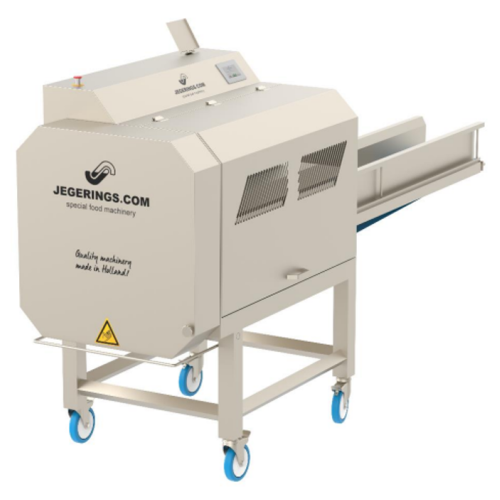

The Belt Cutting Machine BCM-3000 from The Food Machinery Company is tailored for efficient vegetable processing across food processing industries. Engineered with a large 275 mm belt, it effectively slices, dices, and shreds a diverse array of vegetables like cabbage, carrots, and onions, accommodating up to 3000 kg per hour. Its touch screen interface allows easy selection of cutting configurations and language preferences, while the interchangeable cutting discs accommodate various cut styles and sizes without precutting. The machine integrates seamlessly into pre-processing lines, and its tool-free disassembly ensures straightforward cleaning. Designed to enhance productivity, it supports continuous, high-speed operations, ideal for producing coleslaw, diced vegetable medleys, and chopped salad kits in large-scale production settings.

Benefits

  • Enhances processing efficiency with up to 3000 kg per hour throughput.
  • Reduces labor input with easy-to-use touch screen controls.
  • Improves product versatility with interchangeable cutting discs.
  • Simplifies maintenance with tool-free disassembly for cleaning.
  • Supports diverse production needs with adjustable slicing, dicing, and shredding options.

General


Applications
Onions,Chili peppers,Herbs,Paprika,Spring onion,Chinese cabbage,Fruit salad,Salads,Cabbage,Beans,Beet,Celery,Leek,Onion rings,Oxheart cabbage,Potatoes,Parsley,Leafy vegetables,Chives,Carrots,Melon,White cabbage,Flat string beans,Iceberg lettuce,Root vegetables
End products
Vegetable stir-fry mix,Coleslaw,Diced melon for fruit cups,Diced vegetables for soups,Potato slices for crisps,Beetroot slices for salads,Cabbage rolls filling,Herb mixes,Chopped salad kits,Diced vegetable medley,Pre-cut vegetable snack packs,Onion rings for burgers,Vegetable trays for parties,Mixed vegetable bags for freezing,Parsley garnishes,Shredded lettuce for tacos,Leek slices for quiches,Chili pepper seasoning
Steps before
Sorting,Washing,Peeling
Steps after
Mixing,Packing,Weighing
Input ingredients
leafy vegetables,root vegetables,cabbage,carrots,onion,French beans,melon,paprika,salads,endive,chicory,celery,spring onion,Chinese cabbage,oxheart cabbage,flat string beans,chives,parsley,chili peppers,leek,iceberg lettuce,white cabbage,beet,potatoes
Output ingredients
sliced vegetables,dice for fruit-salad,regular cut herbs,perfectly cut vegetables,dice lettuce,short threads cabbage,onion rings,beet slices,trails of cabbage
Market info
The Food Machinery Company Ltd. is known for manufacturing bespoke food processing equipment, like conveyors and mixers, offering engineering expertise for industrial-scale food production, backed by a reputation for quality and tailored solutions in the UK and international markets.

Technical Specifications


Capacity
Up to 3000 kg/hour
Power
4.5 kW
Electrical Data
3 Ph / 400 V / 50 Hz / 11.5 A
Dimensions
2880 x 940 x 1570 mm
Belt Width
275 mm
Weight
580 kg,without knives
Cutting Size
1 to 55 mm
Automation
Touch screen control

Operating Characteristics


Working mechanism
Belt cutting
Capacity
Up to 3000 kg/hour
Automation level
Touch screen control
Flexibility
Interchangeable cutting discs
User friendliness
Easy disassembly for cleaning
Cleaning method
Tool-free disassembly
Cutting thickness range
1 to 55 mm
Batch vs. continuous operation
Continuous
Language selection
Multi-language
Pre-cutting requirement
Not required for large produce

Product type Characteristics


Vegetable type
Leafy / Root / Large
Cutting size
1–55 mm
Capacity required
Up to 3000 kg/hour

Physical Characteristics


Machine footprint
2880 x 940 x 1570 mm
Belt width
275 mm
Weight
580 kg,without knives
Control panel type
Touch screen

Custom Options


Control panel type
Touch screen
Cutter head type
Interchangeable cutting discs
Language options
Multilingual interface
Cleaning method
Tool-free belt disassembly
