Ibc tablet bins for pharmaceutical storage and handling

Efficiently manage pharmaceutical tablet processes with adaptable bins that ensure seamless handling, storage, and transport, reducing contamination risks while enhancing workflow efficiency.

Facilitates Tablet Handling and Transport

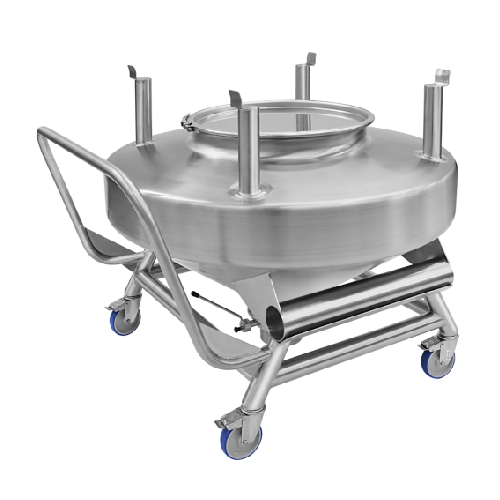

The IBC Tablet Bins from Freund offer a hygienic and flexible solution for pharmaceutical manufacturers handling tablet products. These bins are specifically designed to facilitate the handling, storage, and transport of pharmaceutical tablets like aspirin and ibuprofen. Featuring both wheeled and palletized options, they incorporate a sloped upper head for effective drainage and rounded edges to prevent product retention. The 110° discharge cone ensures efficient unloading, and their construction from AISI 316L stainless steel provides superior corrosion resistance, compliant with FDA standards. With manual and optional actuated discharge valves, they seamlessly integrate into powder handling systems, ensuring precise delivery and minimal contamination. Their smooth surfaces allow for easy cleaning, crucial in maintaining stringent hygiene standards. Furthermore, the bins are stackable for optimized space utilization and are equipped with label holders for clear identification, supporting efficient processing and transport operations.

Benefits

  • Ensures contamination-free handling with hygienic stainless steel construction.
  • Optimizes space and transport efficiency with stackable, palletized, and wheeled options.
  • Streamlines unloading operations with a 110° discharge cone, reducing process time.
  • Complies with pharmaceutical standards, supporting stringent quality requirements.
  • Enhances operational flexibility with manual and optional automated discharge controls.

General


Applications
Pharmaceutical tablets
End products
Ibuprofen tablets,Vitamin d tablets,Antihistamine tablets,Iron supplement tablets,Calcium supplement tablets,Antacid tablets,Multivitamin tablets,Cough suppressant tablets,Aspirin tablets,Paracetamol tablets
Steps before
Granulation,Coating
Steps after
Storage,Transport,Packing
Input ingredients
pharmaceutical tablets
Output ingredients
handled tablets,stored tablets
Market info
Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.

Technical Specifications


Capacity
150–350 L
Material
AISI 316L (1.4404) Stainless Steel
Internal Surface Finish
RA ≤ 0.4 μm
External Surface Finish
Satin RA ≤ 0.8 μm
Discharge Cone Angle
110°
Discharge Valve
Manual Butterfly
Stacking Ability
Bin Palletized Only
Seal/Gasket Material
FDA Approved Silicone
Automation
Actuated Discharge Valve (optional)
Transport Method
Wheeled / Palletized

Operating Characteristics


Batch vs. continuous operation
Batch
Changeover time
Quick-change modular design
CIP/SIP
CIP compatible design
Cleaning method
Manual / CIP
Automation level
Manual / Semi-automatic
Energy efficiency
Optimized for minimal energy use

Physical Characteristics


Slope of Upper Head
Sloped for Better Drainage
Edge Design
Rounded Edges
Discharge Cone Angle
110°
Surface Finish
Smooth Surfaces
Capacity
150 L to 350 L
Material
AISI 316L Stainless Steel
Internal Finish
Polishing RA ≤ 0.4 μm
External Finish
Satin RA ≤ 0.8 μm
Bin/Bin Stacking
Palletized Only
Transportability
Wheeled / Palletized
Discharge Valve
Manual Butterfly Valve / Actuated

Custom Options


Discharge method
Manual Butterfly Discharge Valve
Discharge Valve Type
Actuated Discharge Valve
Discharge Adaptor Options
Pneumatic Transport Connection
Internal Finish
Polishing RA ≤ 0.4 μm
External Finish
Satin RA ≤ 0.8 μm
Stacking Capability
Bin/Bin Stacking Possibility
Transport Option
Wheeled IBC with Removable Trolley
Palletization Type
Designed for Forklift or Pallet Jack Transport
