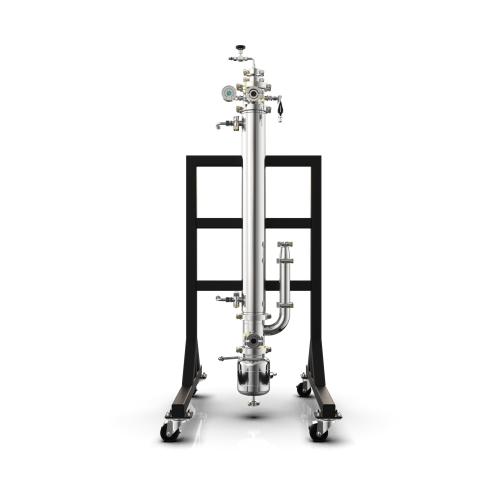

Hydrocarbon solvent distillation unit for extractors
Ensure high purity levels in your extraction process by integrating a distillation unit that refines solvents, reduces contamination, and boosts operational efficiency with continuous purification cycles.

Purifies Solvents for Hydrocarbon Extraction
The Hydrocarbon Distillation Unit (HDU) from Precision Extraction Solutions is a stand-alone system engineered for continuous solvent purification in cannabis extraction processes. Positioned between the source solvent tank and the extractor, it ensures only the cleanest butane, propane, and isobutane enter the extraction stage, preventing equipment contamination. Designed for versatility, the HDU integrates seamlessly with both Precision’s systems, such as the PX1, X10, X40, PX5, PX10, and PX30, and other industry-standard hydrocarbon extraction setups. The unit allows continuous refilling during operation, minimizing downtime and increasing daily extraction cycles by up to five times. With dimensions of 34.5” L x 29.1” W x 64.8” H and a weight of 151 lb, it provides a compact yet robust solution supported by Technical Report certification from Pressure Safety Inspectors, meeting IFC and NFPA Fire Code standards across all U.S. states. For ease of integration and compliance, Precision offers custom evaluations, ensuring the HDU meets your specific extraction needs while providing training and installation support to maximize operational efficiency.
Benefits
- Increases daily production capacity by enabling up to five additional extraction cycles.
- Minimizes equipment contamination, ensuring consistent product quality.
- Reduces operational downtime with continuous solvent refill capability.
- Certified to meet fire safety standards, ensuring compliance across the U.S.
- Offers flexible integration with both Precision and non-Precision extraction systems.
- Applications
- Propane,Solvent distillation,Isobutane,Butane,Hydrocarbon extraction,Essential oils
- End products
- Isobutane cannabis extract,Propane hash oil (pho),Butane hash oil (bho),Cannabis oil concentrate,Essential oil distillates
- Steps before
- { "steps_before": ["Solvent Transfer"], "steps_after": ["Extraction", "Cleaning"], }
- Steps after
- { "steps_before": ["Solvent Transfer"], "steps_after": ["Extraction", "Cleaning"], }
- Input ingredients
- butane,propane,isobutane,source solvent
- Output ingredients
- distilled solvent,cleaned solvent
- Market info
- Precision Extraction Solutions is known for providing innovative, high-quality extraction equipment and solutions for the cannabis industry, specializing in systems that enhance efficiency and safety in extracting cannabinoids and essential oils.
- Dimensions
- 34.5″ L x 29.1″ W x 64.8″ H
- Weight
- 151 lb
- Inlet Connection
- Customizable
- Solvent Type
- Butane,Propane,and Isobutane
- Compatibility
- PX1,X10,X40,PX5,PX10,PX30
- Operation Type
- Stand-alone Unit
- Capacity Increase
- Up to 5 additional extraction cycles per day
- Solvent distillation positioning
- Between source tank and extractor
- Solvent type
- Butane,Propane,Isobutane
- Continuous operation
- Continuous refill during soak time
- Batch vs. continuous operation
- Continuous
- Decontamination process
- Solvent cleaning before entering extractor
- Increase in extraction cycles
- Up to 5 additional cycles per day
- Unit compatibility
- Compatible with PX1,X10,X40,PX5,PX10,PX30
- Hydrocarbon Compatibility
- Compatible with Butane,Propane,Isobutane
- Cleanability
- Prevents contamination,ensuring cleaner extraction
- Compatibility with extraction systems
- Precision and non-Precision hydrocarbon systems
- Technical Report Certification
- Engineer Peer Review from PSI
- Fire Code Compliance
- IFC and NFPA
- Machine footprint
- 34.5″ L x 29.1″ W x 64.8″ H
- Weight
- 151 lb
- Inlet Connection
- Customizable
- Integration possibilities
- Can be paired with non-Precision hydrocarbon extraction systems
