Horizontal plate filtration for fruit juices

Ensure optimal clarity in beverage production with a filtration unit that expertly manages precoating, continuous filtration, and efficient discharge processes, while maintaining the structural integrity of your filtering elements.

Filters and Clarifies Beverages and Syrups

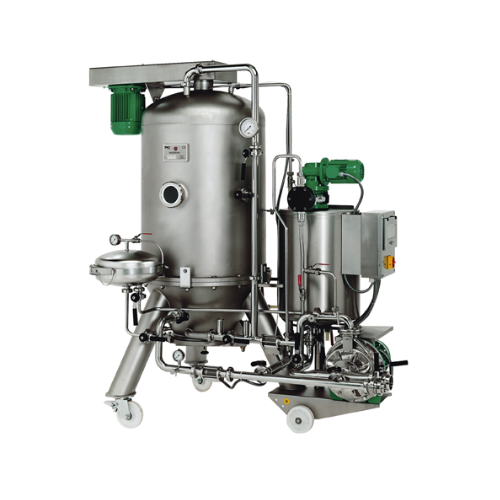

The Greenfilter from Blendtech is a horizontal plate diatomaceous earth (D.E.) filter designed specifically for the food and beverage industry. What sets this equipment apart is its ability to perform efficient filtration and clarification by employing a precoating process and continuous D.E. addition, enhancing the quality and purity of beverages like fruit juices, nectars, soft drinks, and syrups.

The filter’s unique construction features stainless steel AISI 304 plates with AISI 316L filtering cloth, boasting a 65-micron mesh, eliminating the need for a drainage grid and reducing contamination risks. Its motorized plate rotation and centrifugal discharge allow for smooth operation and easy cake release from the filtration chamber.

Greenfilter is engineered for continuous, high-speed operations, seamlessly integrating into existing production lines for both liquid and slurry applications. The specialized inlet flow distributor prevents vortexes and ensures consistent flow rates, further optimizing process efficiency. Designed with easy cleaning and maintenance in mind, it supports swift transitions between different product batches.

With optional customization and engineering support, it suits diverse customer needs, from small-scale syrup producers to large-scale beverage manufacturers, ensuring each operation meets its unique processing demands.

Benefits

  • Enhances product purity with continuous filtration and clarification processes.
  • Minimizes contamination risks by eliminating traditional drainage grids.
  • Integrates efficiently into existing production lines, reducing installation downtime.
  • Simplifies cake discharge and maintenance with motorized plate rotation.
  • Accommodates various beverage formulations, ensuring adaptability across different production needs.

General


Applications
Infusions,Syrups,Nectars,Soft drinks,Fruit juices
End products
Chamomile infusion,Apple juice,Herbal syrup,Peach nectar,Orange juice,Lemon-lime soda,Hibiscus infusion,Cola soft drink,Mango nectar,Fruit syrup
Steps before
Juice Extraction,Nectar Preparation,Soft Drink Pre-mixing,Syrup Blending,Infusion Preparation
Steps after
Clarification,Pasteurization,Carbonation,Bottling,Packaging
Input ingredients
fruit juices,nectars,soft drinks,syrups,infusions
Output ingredients
filtered fruit juices,filtered nectars,filtered soft drinks,filtered syrups,filtered infusions
Market info
BLENDTECH (Omnia Technologies) is known for manufacturing advanced engineered-to-order blending and processing equipment. Their expertise in customized solutions and reliability has earned them a strong reputation in the industrial equipment market.

Technical Specifications


Material
Stainless steel AISI 304
Filter media
Stainless steel AISI 316L with 65 micron mesh
Rotation Mechanism
Hydraulic coupling
Flow Distributor
Special inlet to avoid vortexes
Filtration Method
Precoating and continuous addition of d.e.
Cake Discharge
Centrifugal force plate pack rotation
Filtration Element Cleaning
Final rinse

Operating Characteristics


Working mechanism
Horizontal plates filtration
Integrated steps
Precoating,continuous addition,cake discharge,panel discharge
CIP/SIP
CIP
Batch vs. inline flow
Inline
Plate rotation mechanism
Motorized with hydraulic coupling
Vortex control
Inlet flow distributor
Filtration chamber cleaning
Final rinse

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel AISI 304,316L
Density/particle size
65 micron mesh

Physical Characteristics


Filtration chamber construction
Stainless steel AISI 304
Filtration mesh size
65 micron
Plate material
Stainless steel AISI 304
Filtering cloth material
Stainless steel AISI 316L
Filter plate rotation method
Hydraulic coupling
Inlet flow distributor
Special design to avoid vortexes

Custom Options


Filter Plate Rotation Method
Hydraulic coupling
Inlet Flow Distributor
Special design to avoid vortexes
Filtration Material
Stainless steel AISI 316L with 65 micron mesh
