Horizontal flat pouching line for towelettes

For manufacturers needing efficient packaging, our solution offers rapid horizontal flat pouching for liquid-based towelettes, designed to increase output while maintaining product integrity.

Pouches Liquid Products into Flat Packages

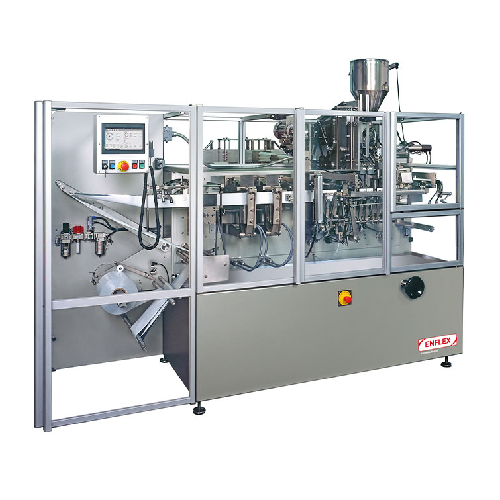

The F-14 TW from Enflex is a specialized horizontal flat pouching machine designed to streamline packaging processes for pharmaceutical, healthcare, tissue, and personal care sectors. It stands out for its high-speed, continuous operation, perfect for liquid products such as wipes and wet tissues. The machine utilizes advanced form fill seal technology to ensure precise dosing and sealing, achieving production rates of up to 180 pouches per minute with widths up to 140mm.

Ideal for manufacturing alcohol wipes, disinfectant wipes, and makeup remover towelettes, it integrates seamlessly into production lines, thanks to its PLC-controlled system that enables full automation and remote monitoring. Energy efficiency is enhanced by optimized motor control, reducing consumption significantly. The F-14 TW offers a robust construction with stainless steel options for superior corrosion resistance, meeting stringent GMP and FDA standards for sanitary applications. It also features easy access for cleaning and maintenance, including optional CIP systems, ensuring minimal downtime and contamination risk. Configurations can be tailored to specific production needs, supported by comprehensive engineering services from Enflex.

Benefits

  • Boosts production efficiency with speeds up to 180 pouches per minute.
  • Enhances product safety and compliance, meeting GMP and FDA standards.
  • Minimizes operational costs with energy-efficient motor control.
  • Ensures product integrity with precise dosing and sealing for liquid containment.
  • Simplifies maintenance and reduces downtime with easy-access design and optional CIP system.

General


Applications
Personal care,Tissues,Wipes,Tissue,Hygiene,Pharma,Healthcare
End products
Facial cleansing wipes,Makeup remover towelettes,Baby wipes,Antibacterial wipes,Single-dose medicated wipes,Pocket tissue packs,Disinfectant wipes,Wet toilet tissues,Hand sanitizing wipes,Alcohol wipes
Steps before
Material Preparation,Solution Mixing,Formulation,Cutting
Steps after
Sealing,Cartoning,Labelling,Quality Inspection,Distribution
Input ingredients
towelettes
Output ingredients
flat pouches
Market info
Enflex (Coesia Group) is known for providing high-quality packaging machinery solutions, particularly in the vertical and horizontal form-fill-seal equipment market. They are renowned for their innovation, reliability, and customer-focused engineering solutions in the packaging industry.

Technical Specifications


Speed
Up to 180 ppm
Maximum Pouch Width
Up to 140 mm
Technology Type
Horizontal Flat Pouching

Operating Characteristics


Working mechanism
Horizontal Flat Pouching
Integrated steps
Pouch forming,filling,and sealing
Batch vs. continuous operation
Inline Continuous
Production speed
Up to 180 ppm
Maximum pouch width
140 mm

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product Type
Towelettes
Industries
Pharma,Healthcare,Tissue,Hygiene
Segment
Other Pharma,Healthcare,Other Tissue,Hygiene,Tissues,Wipes

Physical Characteristics


Discharge method
Horizontal Flat Pouching
Machine speed
up to 180 ppm
