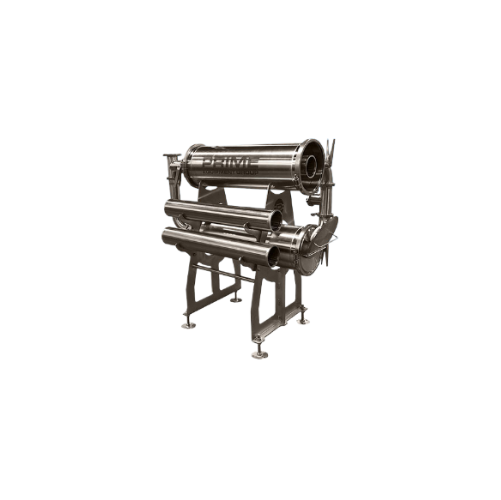

Horizontal canister filter for poultry processing

Efficiently filter and separate solids from water in your processing line, optimizing water reuse and waste management while maintaining high product quality and environmental compliance.

Filters and Reuses Process Water Efficiently

The Prime LFS HCF-Series Horizontal Canister Filters from JBT Prime Equipment Group offers a robust solution for your filtration and water reuse needs. This system integrates seamlessly into existing poultry, meat, and seafood processing lines, playing a critical role in water treatment by efficiently filtering and separating solids from liquids. It operates as a key part of a two-stage process with capacities up to 600 GPM, utilizing wedgewire screens with precise gaps to achieve high levels of filtration. The system’s automated, continuous operation is supported by easy-to-clean canisters and integrated storage, making maintenance straightforward without the need for plumbing disconnection. Constructed for durability, it offers customizable configurations to fit specific operational requirements and contributes significantly to sustainability efforts by reducing water consumption. Ideal for processors aiming to recycle process water and achieve treated wastewater outputs, this equipment ensures compliance with environmental standards through its efficient design and engineering support.

Benefits

  • Enhances sustainability by enabling significant water reuse and cost savings.
  • Reduces maintenance time with easy-to-clean filter designs.
  • Supports continuous operations with automatic balancing capabilities.
  • Promotes compliance with environmental regulations by improving water treatment effectiveness.
  • Adapts to diverse processing needs with customizable configurations and engineering support.

General


Applications
Seafood,Water reuse,Meat,Water treatment,Poultry
End products
Recycled process water,Processed meat patties,Chicken thighs,Chicken breasts,Shrimp,Processed seafood cakes,Ground beef,Treated wastewater,Fish fillets,Sausages,Boneless skinless chicken fillets,Chicken wings
Steps before
Pre-screening,Initial filtration,Particulate removal
Steps after
Water reuse,Wastewater treatment
Input ingredients
process water,solids,particulate matter
Output ingredients
filtered water,waste solids,re-used water
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Flow rate
10" Canisters
Flow rate
12" Canisters
Screen gap size
0.005 inches (125 microns)
Pre-screen gap size
0.010 inches (250 microns)
Canister connections
10" Canisters
Canister connections
12" Canisters

Operating Characteristics


Working mechanism
Horizontal Canister Filters
Integrated steps
Two-stage filtering process
Automation level
Auto-balanced systems
Flow rate
300 GPM for 10" Canisters
600 GPM for 12" Canisters
Cleaning method
Easy-to-clean filter replacement
Water re-use capability
Designed for water re-use
Filter gap size
0.005 inches (125 microns)

Physical Characteristics


Filter size
10" Canisters / 12" Canisters
Flow rate
Max 300 GPM / Max 600 GPM
Filter type
Wedgewire screens
Screen gap size
.005 inches (125 microns)
System configuration
Two-stage filter system
Connection type
3" / 4" Sani Tri-Clamp connections
Footprint flexibility
Self-contained or full-room
Material
Stainless-steel wedgewire
Discharge method
Easy-to-clean,low-lift filter replacement
Storage
Integrated storage rack

Custom Options


Integration possibilities
Auto-balancing capabilities
Filter size
10" Canisters / 12" Canisters
Connection type
Sani Tri-Clamp connections
Flow rate customization
Max 300 GPM / Max 600 GPM
System scalability
Self-contained units to full-room systems
