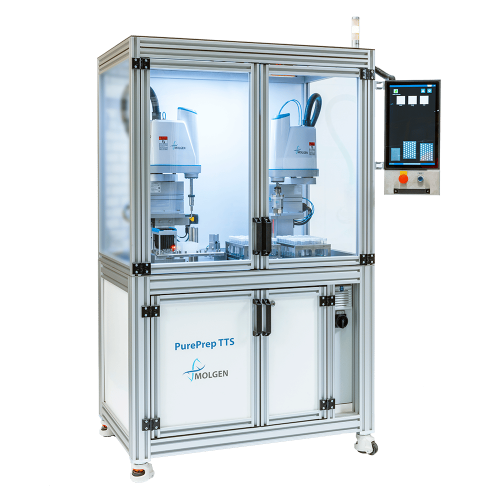

High-throughput tube transfer system for laboratory use

Streamline sample processing with a high-speed system capable of precise liquid transfers and barcode tracking, ideal for enhancing throughput and reducing manual labor in laboratory environments.

Transfers and Tracks Liquid Samples Efficiently

The PurePrep TTS from LabTIE is a high-throughput tube transfer system tailored for laboratories seeking efficient sample handling and tracking. It excels in rapidly transferring liquids from tubes to deep well microtiter plates, capable of processing up to 220 samples per hour via an optimized dual-arm design. This system especially benefits applications in animal diagnostics, biotech research, and nucleic acid extraction, producing outputs like DNA/RNA samples and diagnostic test samples. Its integration into labs is seamless, with LIMS compatibility and barcode scanning ensuring precise sample tracking. The use of liquid displacement technology and automatic de-capping minimizes human intervention, reducing contamination risks. Additionally, it offers robust automation with features like run resumption post-interruptions and is supported by engineering customization to handle various tube sizes.

Benefits

  • Enhances productivity by processing up to 220 samples per hour, minimizing manual labor.
  • Reduces contamination risk with automated de-capping and liquid displacement technology.
  • Ensures precise sample tracking with LIMS-compatible system and integrated barcode scanners.
  • Minimizes procedural errors and downtime with run resumption features after interruptions.
  • Customizable to accommodate various tube sizes, optimizing laboratory workflow.

General


Applications
Liquid handling,Biotechnology,Nucleic acid extraction,Animal diagnostics,Sample processing,Laboratory automation
End products
Sequencing libraries,Blood plasma samples,Elisa reagents,Rna samples,Diagnostic test samples,Dna samples,Tissue homogenates,Pcr reagents,Protein assays,Microbial cultures
Steps before
Nucleic Acid Extraction,Sample Collection,Tube Labeling
Steps after
Analysis,Data Recording,Storage
Input ingredients
tubes,samples,tubes with swabs,PurePrep TL+ samples
Output ingredients
deep well microtiter plates,processed samples
Market info
Molgen is known for manufacturing customized engineered-to-order (ETO) equipment, specializing in tailored solutions for complex industrial needs. Their expertise lies in innovative engineering, delivering high-quality, precise, and reliable machinery that meets specific client requirements.

Technical Specifications


Samples per hour
220
Width
145 cm
Depth
77 cm
Height
195 cm
Weight
375 kg
Automation
Automated liquid handling
Compatibility
LIMS Compatible
Pipetting Mechanism
Liquid Displacement

Operating Characteristics


Automation level
Fully automated dual-arm
Batch vs. continuous operation
Continuous
Changeover time
Minimal due to integrated automation
CIP/SIP
Not specified
Cleaning method
Not specified
Energy efficiency
Not specified
LIMS compatibility
Yes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


LIMS Compatibility
Yes

Physical Characteristics


Weight
375 kg
Width
145 cm
Depth
77 cm
Height
195 cm
Footprint Style
Compact
Discharge Method
Liquid transfer from tubes to plates
Machine Capacity
220 samples per hour
Control Panel Type
Automated with LIMS compatibility

Custom Options


Integration possibilities
LIMS compatibility
Control panel type
Automated interface
Barcode scanner integration
Yes
Custom tube size processing
Yes
Sample tracking
Barcode-enabled
