High-speed syringe plunger rod assembly

Achieve seamless syringe preparation with high-speed plunger rod assembly, ensuring precise component insertion and consistent labeling, all while maintaining stringent aseptic conditions in your production line.

Inserts and Inspects Syringe Plunger Rods

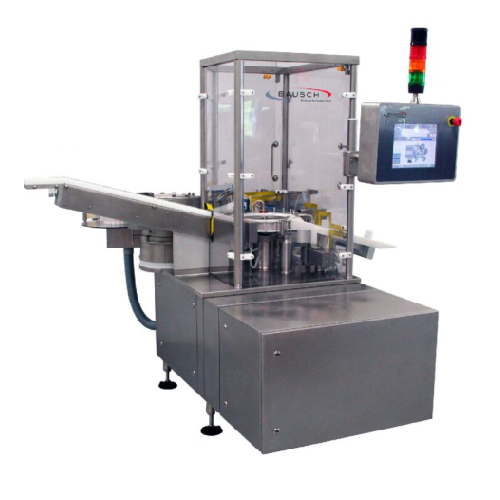

The Type 515 Plunger Rod Assembly from BAUSCH Advanced Technology Group is designed for high-precision, high-speed automated assembly in the pharmaceutical and biotech sectors. This compact unit efficiently integrates into aseptic fill-finish lines with capabilities for inserting and inspecting plunger rods on up to 2,400 syringes per hour. Utilizing a pneumatically actuated gripper and a 2-axis robotic arm, it ensures precise threading of plunger rods, while a camera inspection system verifies correct assembly, optimizing production accuracy and reducing errors. Primarily for use in processing pre-filled and specialty medication syringes, it supports seamless integration with existing machinery thanks to its modular design and optional labeling station. Fabricated with focus on compliance, the equipment supports GMP standards, making it a reliable choice for pharmaceutical manufacturers seeking efficient assembly solutions.

Benefits

  • Enhances production efficiency by assembling up to 2,400 syringes per hour.
  • Minimizes manual errors with precise robotic plunger rod insertion and inspection.
  • Optimizes space in facility with its compact design and integrated control cabinet.
  • Provides flexibility in operations with optional labeling station for customized finishes.
  • Ensures compliance with pharmaceutical industry standards, maintaining product safety and integrity.

General


Applications
Aseptic fill-finish products,Medical devices,Syringes,Pharmaceuticals
End products
Clinical trial dosage syringes,Insulin syringes,Biologic syringes,Aseptic vaccine syringes,Injectable drug syringes,Pre-filled syringes,Specialty medication syringes
Steps before
Syringe Manufacturing,Syringe Loading
Steps after
Labeling,Inspection,Packaging
Input ingredients
plunger rods,syringes
Output ingredients
assembled syringes,labeled syringes,syringes with plunger rods,syringes with backstops
Market info
Bausch Group is known for its precision engineering and manufacturing of custom industrial equipment, specializing in engineered-to-order solutions for various industries, prioritizing quality, innovation, and client-specific needs.

Technical Specifications


Maximum output
2,400 syringes/hr
Compact machine design
Integrated control cabinet
Precision
High precision plunger rod insertion
Torque monitoring
Monitored for ideal closing results
Inspection system
Camera inspection for proper plunger rod and backstop placement
Automation
Automated transport star wheel
Robotic arm
2-axis robotic arm for plunger rod threading
Speed
Assemble up to 40 syringes per minute
Labeling station
Optional

Operating Characteristics


Working mechanism
Automated transport star wheel
Integrated steps
Plunger rod insertion and labeling
Automation level
High-speed,automated
Output capacity
2,400 syringes/hr
Labeling capability
Optional station available

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product type
Syringes

Physical Characteristics


Machine footprint
Compact design
Integrated control cabinet
Yes
Transport method
Automated transport star wheel
Compact footprint
Yes

Custom Options


Control panel type
Integrated control cabinet
Labeling station
Optional
Machine design
Compact
