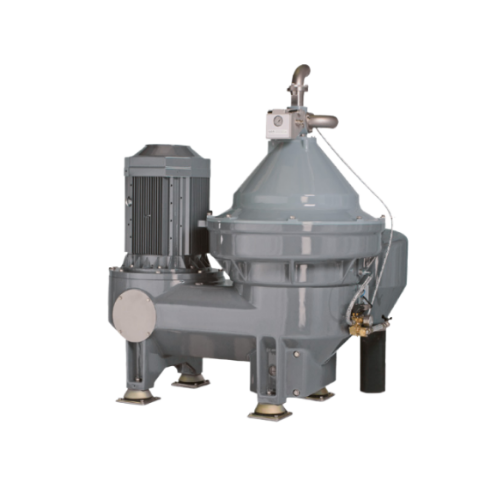

High-speed separator for oil and water phases in oil & gas

Ensure continuous operation in harsh oil and gas environments with high-speed separation of viscous, contaminated media, offering robust performance in dewatering and desalting processes.

Separates and Purifies Oil and Water Phases

The separators for oil and gas by GEA are engineered to optimize phase separation and purification in demanding industrial environments. These high-speed centrifuges utilize advanced centrifugal force to efficiently process oil, gas, and solid-liquid mixtures, including crude and slop oils. With throughput capacities reaching up to 80 m³/h, they are integral for applications such as dewatering, desalting, and de-oiling in oil and gas production and drilling operations. Offering seamless integration into existing production lines, the separators are PLC-controlled for automatic and continuous operation, ensuring reliable performance with minimal maintenance needs.

Designed with corrosion-resistant duplex and super duplex steel, these separators provide robust durability and meet explosion protection (ATEX) standards, making them suitable for both onshore and offshore installations. Their compact design minimizes space requirements, while options for nitrogen blanketing offer additional operational safety. With GEA’s expertise, these separators are customizable to meet specific processing requirements, supported by comprehensive engineering and technical assistance.

Benefits

  • Enhances operational efficiency with continuous, automatic high-speed separation.
  • Minimizes maintenance needs due to durable, corrosion-resistant materials.
  • Ensures safety and reliability with explosion-proof design and nitrogen blanketing.
  • Saves floor space with compact, ready-to-connect design.
  • Maximizes uptime through robust construction suitable for harsh environments.

General


Applications
Drilling suspensions,Produced water,Gas,Bilge water,Oil,Slop oil,Crude oil,Solid-liquid mixtures
End products
Cleaned produced water,Treated drilling fluids,Purified bilge water,Dehydrated crude oil,Desalted crude oil,Heavy crude oil
Steps before
Emulsification,Mixing,Extraction,Drilling,Collection,Crude oil collection
Steps after
Dehydration,Desalting,Purification,Heating,Refining,Storage
Input ingredients
crude oil,slop oil,viscous media,diluted media,contaminated media,drilling suspensions,sludges,heavy crude oil,bilge water,drain water,produced water
Output ingredients
separated oil,purified water,emulsions,desalinated crude oil,dewatered crude oil
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Throughput Capacity
Up to 80 m³/h
Automation
Unsupervised fully automatic and self-monitoring operation
Explosion-proof Design
Gas-tight with ATEX compliance
Material
Duplex/Super Duplex Steel
Corrosion and Erosion Resistance
High Resistance
G-force
Maximum g-force
Space Requirement
Minimum Space Requirements
Weight
Minimum Weight
Process Line
Ready-to-connect
Capacity
Maximum Cost-effectiveness Throughout Life Cycle

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP / SIP / manual
Energy efficiency
0.5–2 kWh/kg moisture
Cleaning method
CIP / Manual

Material Compatibility


Corrosion resistance
Duplex/Super Duplex Steel
Explosion-proof materials
ATEX compliant
Cleanability
Suitable for automatic and self-monitoring operation
Durability
Materials highly resistant to erosion


ATEX certification
Explosion protection

Physical Characteristics


Compact footprint
Yes
Control panel type
PLC-controlled
Discharge method
Automatic / Self-monitoring

Custom Options


Centrifuge design
Gas-tight with nitrogen blanketing
Bowl material
Duplex/Super Duplex Steel
Installation type
Onshore/Offshore
