High-speed overwrapping solution for cartons
Designed for high-speed operations, this compact overwrapping solution integrates seamlessly into packaging lines, ensuring efficient, precise wrapping to enhance product presentation and protection.
Overwraps and Stacks Pharmaceutical Cartons

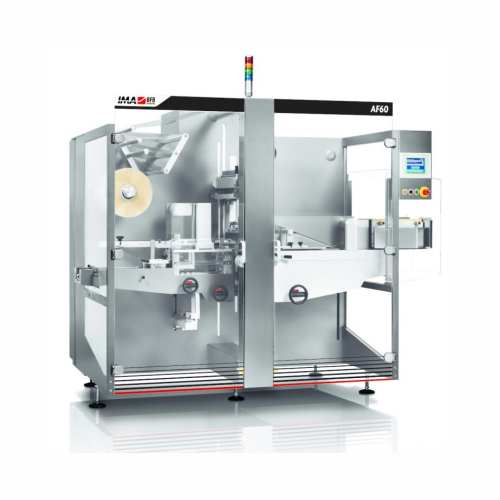

The AF60 from IMA Group is a compact, high-speed overwrapping machine tailored for the pharmaceutical industry. It excels in efficient overwrapping of medicine blister packs, medication bottles, and other pharmaceutical cartons. Utilizing servo-driven technology, the AF60 delivers reliable performance, stacking up to 225 layers per minute and tilting up to 400 cartons per minute for optimal packaging line integration. Designed with a balcony style for easy maintenance, it offers tool-free size changeovers in five minutes, minimizing downtime. Additionally, the machine incorporates scissor knife cutting, film transport by pincers, and secure edge-sealing, ensuring consistent high-quality wrapping. The AF60 is suitable for Track and Trace applications and meets stringent pharmaceutical compliance standards. With its ergonomic design, rapid film reel changes are streamlined, making it a versatile choice for a variety of solid pharmaceutical products.
Benefits
- Enhances packaging line speed with rapid carton stacking and tilting capabilities.
- Minimizes maintenance time with tool-free, 5-minute size changeovers.
- Supports comprehensive Track and Trace functionality for enhanced product safety.
- Streamlines cleaning and operational access with user-friendly balcony design.
- Ensures consistent and high-quality wrap integrity with precise film transport and sealing technology.
- Applications
- Packaging lines,Cartons,Pharmaceutical products
- End products
- Medication bottles,Medicine blister packs,Pharmaceutical vials,Prescription drug boxes,Over-the-counter medicine cartons
- Steps before
- Stacking,Carton Tilting,Product Flow Preparation
- Steps after
- Track and Trace,Bundle Discharge,Line Clearance
- Input ingredients
- cartons,wrapping film,PVC,PE,PP,cellophane
- Output ingredients
- overwrapped cartons,stacked cartons
- Market info
- IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.
- Overwrapping Speed
- Up to 60 cycles/min
- Carton Stacking Speed
- Up to 225 layers/min
- Carton Tilting Speed
- Up to 400 cartons/min
- Film Transport Mechanism
- Pincers
- Sealing Type
- Transversal edge-sealing,reciprocating lateral sealing plates
- Footprint
- Compact
- Changeover Time
- 5 minutes (tool-free)
- Automation
- Servo driven
- Film Type
- CELLOPH,PVC,PE,PP
- Product Dimensions
- Min
- Wrapping speed
- 60 cycles/min
- Automation level
- Servo-driven
- Changeover time
- Tool-free in 5 minutes
- Batch vs. continuous operation
- Continuous
- Cleaning method
- Balcony design for easy access
- Product stacking capability
- 225 layers/min
- Carton tilting capability
- 400 cartons/min
- Film handling
- Scissor knife,film transport by pincers
- Sealing mechanism
- Transversal edge-sealing
- Film folding
- Driven bottom and lateral folders
- Ergonomics
- Quick expansion lock device
- Wrapping film
- Cellophane,PVC,PE,PP
- Product dimensions
- Min 20x12x60 mm,Max 360x120x230 mm
- Machine footprint
- Compact
- Control panel type
- Ergonomic design with shaft
- Discharge method
- Automatic bundle discharge
- Control panel type
- Digital indicators
- Compact footprint
- Yes
- Tool-free size changeover
- 5 minutes
- Bypass mode
- Optional
- Shaft featuring quick expansion lock
- Rapid film reel change
- Balcony style concept
- Improves line clearance
