High pressure leak detection system for automotive components
Detecting leaks in automotive components under high pressures is crucial for ensuring component integrity. Traditional methods can be labor-intensive and prone to error, resulting in inefficiencies and potential safety hazards.
Automated high-pressure leak detection and robotic loading

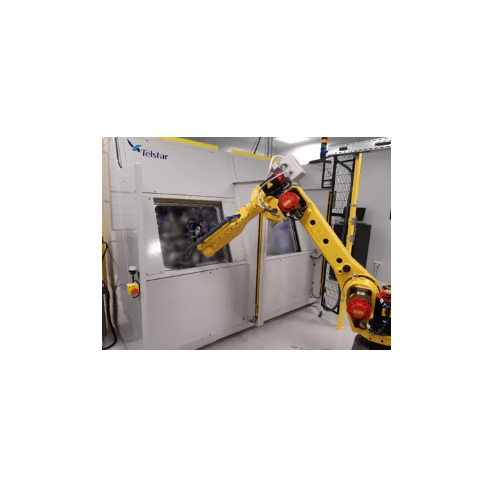

The High Pressure Leak Detection System by Telstar is a double-chamber detection solution designed for automotive components. The system tests parts at pressures up to 380 bar(a) with a sensitivity of 10-6 mbar l/s. It features automatic loading and unloading from a production line using a robot, greatly reducing manual labor and increasing accuracy. The integrated multi-stage high vacuum system and a helium detector by quadrupole mass spectrometer ensure precise and reliable results. An integrated helium recovery system enhances sustainability by making the process more economical and environmentally friendly. The cycle time for each test is approximately 20 seconds, which significantly boosts production efficiency.
Benefits
- Reduces manual labor with automated loading/unloading
- High sensitivity for accurate leak detection
- Fast cycle time for increased production efficiency
- Sustainable operation with helium recovery system
- Reliable and precise results
