High-capacity slicer for leafy vegetables and firm products
Optimize your fresh produce line with this high-capacity cutter, perfect for transforming a wide variety of fruits and vegetables into slices, shreds, and julienne cuts, ensuring precise, uniform results every time.
Slices and Shreds Vegetables for Continuous Processing

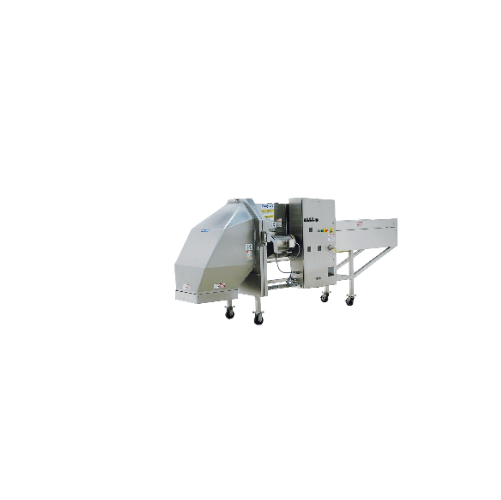

The TranSlicer 2510 Cutter from Urschel Laboratories is a high-capacity slicing and shredding machine designed for food processors and fresh salad producers. It excels in handling compressible products like leafy greens and firm vegetables, offering a range of interchangeable cutting wheels for various slice and shred sizes. Employing a continuous operation system, the machine ensures uninterrupted processing with precise control through its variable frequency drive. Capable of processing vegetables up to 8 inches in diameter, it is ideal for producing shredded iceberg lettuce, diced papaya, and julienne leeks, among other products. The stainless steel construction promotes sanitary processing conditions, and optional hold-down assemblies enhance feeding reliability. For maintenance, hinged access panels facilitate easy parts changeover and cleaning, ensuring minimal downtime.
Benefits
- Enhances production efficiency with high-capacity continuous operation.
- Supports a wide range of product sizes and types, reducing the need for pre-cutting.
- Lowers maintenance time with easy-access panels for quick part changeovers.
- Provides cost savings through precise speed control and energy management.
- Maintains consistent product quality with interchangeable cutting wheels for diverse cuts.
- Applications
- Fresh salads,Packaged salad kits,Fruits,Vegetables,Leafy vegetables
- End products
- Kiwi slices for fruit platters,Diced papaya for fruit salads,Iceberg lettuce shreds for salad kits,Zucchini slices for stir-fry mixes,Sliced eggplant for vegetable dishes,Celery sticks for snack packs,Julienne or sliced leeks for soup packs,Shredded red cabbage for coleslaw
- Steps before
- Precutting,Sorting,Washing
- Steps after
- Packaging,Mixing,Quality Control
- Input ingredients
- compressible food products up to 8" (203 mm) in diameter,firm food products up to 6-3/4" (171 mm) in diameter,leafy vegetables,celery,eggplant,iceburg lettuce,kiwi,leek,papaya,red cabbage,zucchini
- Output ingredients
- uniform slices,shreds,julienne cuts,3" (76.2 mm) celery sticks,1/2" (12.7 mm) celery slices,3/16" (4.8 mm) eggplant slices,1/8" (3.2 mm) iceburg lettuce shreds,1-3/8 x 1-1/2" (35 x 38 mm) iceburg lettuce squares,3/16" (4.8 mm) kiwi slices,1/2" (13 mm) leek slices,3/4" (19.1 mm) papaya dice,1/8" (3.2 mm) red cabbage shreds,3/16" (4.8 mm) zucchini slices
- Market info
- Urschel is known for its expertise in precision cutting technology and manufacturing industrial food processing equipment, especially cutting machines. It has a strong reputation for quality and innovation in delivering engineered-to-order solutions for the food processing industry.
- Length
- 150.82" (3831 mm)
- Width
- 49.88" (1267 mm)
- Height
- 66.75" (1695 mm)
- Net Weight
- 1,500 lb (680 kg)
- Cutting Wheel Motor
- 3 HP (2.2 kW)
- Feed Belt Motor
- 1 HP (.75 kW)
- Product Diameter Capacity (Compressible)
- Up to 8" (203 mm)
- Product Diameter Capacity (Firm)
- Up to 6-3/4" (171 mm)
- Types of Cuts
- Slices,Shreds,Julienne
- Slice Thickness Range
- 1/32" to 3" (.8 mm to 76.2 mm)
- Julienne Cut Range
- 3/8 x 3/8" to 3 x 2" (9.5 x 9.5 mm to 76.2 x 50.8 mm)
- Shred Length Range
- 3/8" (9.5 mm) to 3" (76.2 mm)
- Slice Thickness for Shreds
- 1/32 to 9/32" (.8 to 7.1 mm)
- Automation
- VFD (Variable Frequency Drive)
- Automation level
- VFD (Variable Frequency Drive)
- Batch vs. continuous operation
- Continuous
- Changeover time
- Quick due to hinged access panels
- Cleaning method
- Manual
- Energy efficiency
- Maximized by VFD
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine Footprint
- 150.82" x 49.88" x 66.75" (3831 mm x 1267 mm x 1695 mm)
- Net Weight
- 1,500 lb (680 kg)
- Feed/Discharge Method
- Interchangeable cutting wheels,Optional hold-down top belts
- Material Construction
- Stainless Steel
- Cutting Wheel Motor
- 3 HP (2.2 kW)
- Feed Belt Motor
- 1 HP (.75 kW)
- VFD (Variable Frequency Drive)
- Yes
- Interchangeable Cutting Wheels
- Slicing,Julienne,Shredding
- Hinged Access Panels
- Yes
