Heavy-duty vertical conveyor for aggregates and minerals

Achieve efficient vertical transport of heavy, abrasive materials like aggregates and minerals with unparalleled durability, ensuring your operation handles substantial volumes while minimizing wear and tear, even at lower operational speeds.

Elevates and Conveys Bulk Materials Vertically

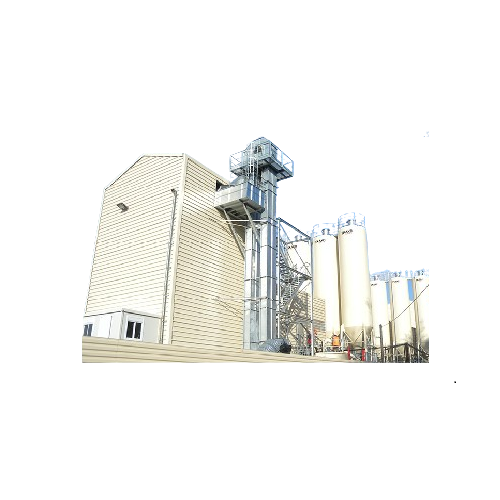

The EHN-type Bucket Elevators from WAMGROUP are engineered for heavy-duty vertical elevation of materials such as aggregates and minerals. This equipment stands out due to its robust construction and low-speed operation, specifically designed to handle abrasive and bulk materials in continuous industrial applications. The EHN elevators use solidly mounted roller bearings to support the bucket conveyor system, consisting of abrasion-resistant mild steel buckets that adhere to DIN15234 standards. Ideal for industries like cement, lime, gypsum, and concrete processing, these elevators facilitate the efficient movement of materials up to a discharge height of 60 meters, with a throughput capacity of 310 m³/h. Each unit is hot-galvanized for durability and can be customized entirely in stainless steel upon request to enhance corrosion resistance. Incorporating a direct gear motor, the elevators offer automation features such as rotation and belt misalignment sensors, and are available in ATEX-compliant versions for explosive environments. With inspection hatches strategically placed, maintenance is streamlined, ensuring minimal downtime. WAMGROUP provides engineering support to tailor these elevators to specific production needs, allowing for integration into existing processes while maintaining energy efficiency.

Benefits

  • Ensures reliable transport of abrasive materials with low-speed operation, minimizing wear and tear.
  • Enhances production capacity, handling up to 310 m³/h.
  • Minimizes maintenance downtime with accessible inspection hatches.
  • Customizable in stainless steel to resist corrosion in harsh environments.
  • Improves safety and efficiency with ATEX compliance and integrated sensors.

General


Applications
Lime,Limestone,Asphalt,Carbonate,Dry building materials,Concrete,Aggregates,Gypsum,Sand,Minerals,Refractory products,Gravel,Cement
End products
Construction gypsum boards,Construction-grade lime,Concrete blocks,Decorative gravel,Crushed stone,Portland cement,Quartz sand,Fire-clay bricks,Limestone powder,Asphalt shingles
Steps before
Material Collection,Material Drying,Grinding,Screening
Steps after
Material Storage,Material Processing,Packing,Quality Control
Input ingredients
aggregates,gravel,carbonate,lime,limestone,sand,minerals,powdery materials,abrasive materials,non-packing materials
Output ingredients
elevated aggregates,elevated minerals
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Capacity
Up to 310 m³/h (182 cfm)
Discharge height
Up to 60 meters (197 ft)
Material Handling
Dry,powdery,abrasive,non-packing materials
Particle size
Up to 50 mm
Material Construction
Hot-galvanized carbon steel
Abrasion Resistance
Abrasion-resistant mild steel buckets
Surface Treatment
Hot dip galvanized
Motor Type
Direct gear motor
Sensors
Rotation and belt misalignment sensors
Inspection Features
Inspection hatches on head and foot section
Construction Options
Stainless steel on request
Compliance Options
ATEX versions on request

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Inline Continuous

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
No
Density/particle size
0.5–2.5 g/cm³ / 50 mm

Product type Characteristics


Industries
Cement,Lime,Gypsum,Asphalt etc.

Physical Characteristics


Machine footprint
Variable
Bucket size
Standardized modular components
Construction material
Hot-galvanized carbon steel
Discharge method
Centrifugal force
Height
Up to 60 meters (197 ft)
Width/diameter
N/A
Surface treatment
Hot dip galvanized
Bucket material
Abrasion-resistant mild steel

Custom Options


Surface treatment
Hot dip galvanized
Version material
Completely in stainless steel on request
Inspection hatches
On head and foot section
