Grinding and polishing robot for metallographic samples

Optimize your metallographic workflow with a high-speed solution that seamlessly integrates grinding and polishing, designed to deliver precision-prepared samples every time.

Automates Grinding and Polishing of Metallographic Samples

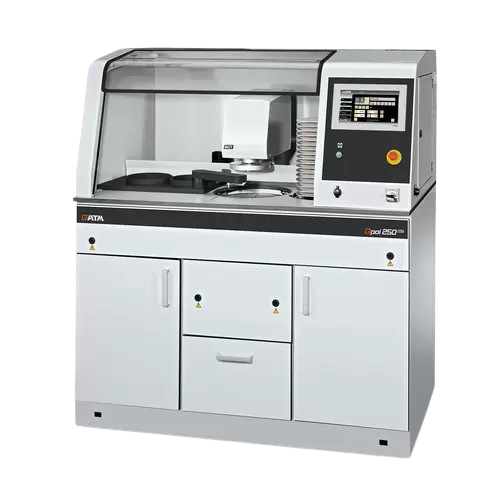

The Qpol 250 BOT from QATM is a fully automated grinding and polishing robot tailored for metallographic laboratories seeking precision in sample preparation. This equipment integrates seamlessly into your lab, automating the grinding and polishing of metallurgical samples with its intuitive touch-screen controls and automatic media changer. Designed for efficiency, it features a central pressure system that simplifies the loosening and tightening of sample holders. The Qpol 250 BOT is equipped with a variable-speed polishing head, a six-fold dosing unit for abrasives, and a comprehensive cleaning station with water, air, and ethanol, ensuring thorough surface preparation. It supports applications ranging from microstructure examination to hardness testing, producing polished sample surfaces and metallographic specimen mounts. With a maximum speed of 600 rpm for grinding and 150 rpm for polishing, it optimizes throughput while maintaining high safety standards through a light barrier system. Its robust, powder-coated aluminum case ensures durability, and the system is designed for easy integration with existing laboratory equipment, making it an ideal choice for metallography and material testing industries.

Benefits

  • Streamlines lab workflow, reducing preparation time with automated grinding and polishing.
  • Enhances sample consistency with precise central pressure controls and variable speed settings.
  • Decreases manual intervention, minimizing labor costs through intuitive touch-screen automation.
  • Ensures operator safety with integrated light-barrier protection.
  • Offers versatile application support for metallurgical analysis and quality control testing.

General


Applications
Metallurgy,Metallographic samples,Metallography,Hardness testing,Metallurgical analysis,Microstructure examination,Material science applications,Surface preparation
End products
Metallographic specimen mounts,Microstructure analysis slides,Polished sample surfaces,Polished metal cross-sections,Etched microstructure slides,Prepared metallurgical samples,Hardness test samples
Steps before
Cutting,Mounting
Steps after
Hardness Testing,Etching,Analyzing
Input ingredients
grinding media,polishing media,samples,diamond suspension,lubricant,fine polishing suspension,abrasives,fresh water,compressed air
Output ingredients
polished samples,waste water
Market info
QATM is renowned for its expertise in manufacturing high-quality metallographic equipment and consumables, providing innovative solutions for material testing and analysis, which are trusted by laboratories and quality control professionals globally.

Technical Specifications


Drive power
1.1 kW S3/40%
Drive power polishing head
0.17 kW S1
Speed (head)
30 - 150 rpm
Speed (grinder)
50 - 600 rpm
Controlled removal measurement (display accuracy)
0.1 mm
Water connection
1x fresh water R½" max. 6 bar
Water outlet
1x waste water DN50
Compressed-air connection
6 bar,coupling connector NG8
Working wheels diameter
ø 250 mm
Sample holder diameter
Ø160 mm
Dimensions (W x H x D)
1320 x 1500 x 800 mm

Operating Characteristics


Automation level
Fully Automated
Changeover time
Automated media change
Cleaning method
Water,Air,Ethanol
Batch vs. continuous operation
Batch
Control interface
Touch Screen
Safety features
Light Barrier

Material Compatibility


Abrasion resistance
High
Cleanability
High
Corrosive resistance
Yes
Density/particle size
80-500 PPI

Physical Characteristics


Compact footprint
W x H x D 1320 x 1500 x 800 mm
Sample holder size
Ø 160 mm
Working wheel size
Ø 250 mm

Custom Options


Control panel type
Touch screen
Integration possibilities
Automated media changer
Safety features
Light barrier
