Film separation system for recycling processes

Facing challenges with film removal in recycling streams? Optimize your pre-sorting process by efficiently extracting over 70% of large films, simplifying handling downstream while maintaining high operational speeds.

Removes Films from Mixed Recyclables

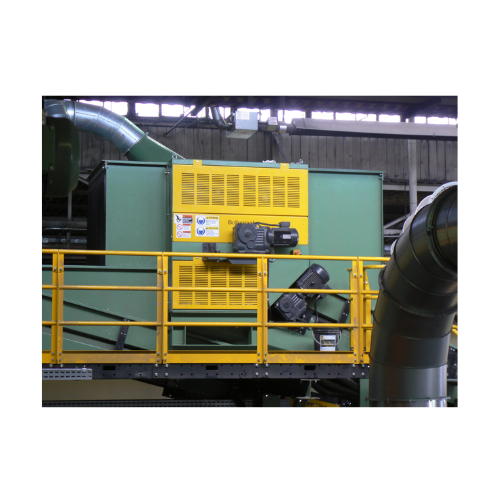

The BRS Filmgrabber from Bollegraaf is engineered to efficiently remove film materials from waste streams, utilizing a revolving drum equipped with variable speed motors and retractable pins. This system excels at withdrawing films like plastic bags and wraps from recyclables, positioning it upstream in the sorting line to enhance accuracy for cabin operators and optical sorters. Suitable for applications in plastic and mixed recyclables, municipal solid waste, and construction and demolition waste processing, it manages materials larger than A4 size with over 70% removal efficiency. The BRS Filmgrabber boasts a notable processing capacity, featuring an aeraulic suction system with an integrated dust collector handling up to 20,000 M3/H. Designed for continuous high-speed operations, it ensures minimal downtime and maintenance due to its self-cleaning mechanism facilitated by retractable pins. This robust and durable equipment is a preferred choice for recycling facilities seeking streamlined, efficient waste processing solutions.

Benefits

  • Increases sorting efficiency by removing over 70% of films, aiding faster downstream processes.
  • Minimizes operational delays with automatic self-cleaning, reducing maintenance efforts.
  • Enhances resource management with a high-capacity aeraulic system processing up to 20,000 M3/H.
  • Supports continuous, high-speed operations, improving productivity in waste management.
  • Built with robust materials, ensuring long-lasting performance and reliability.

General


Applications
Paper and cardboard waste,Construction and demolition (c,Single stream waste,Plastic waste,Municipal solid waste (msw),D) waste
End products
Separated construction materials,Debris-free recyclables,Cleaned municipal waste,Mixed recyclables,Plastic bags,Shopping bags,Plastic wraps,Cardboard boxes,Mixed paper products
Steps before
Pre-sorting,Feeding
Steps after
Sorting by cabin operators,Optical sorting,Further separation
Input ingredients
recyclables,films,foils,shopping bags,wrappings
Output ingredients
separated films,clean recyclables stream
Market info
Bollegraaf is known for manufacturing advanced recycling equipment and systems. With a strong reputation for innovation and quality, they specialize in engineered-to-order solutions, optimizing waste processing efficiency and sustainability for diverse industries globally.

Technical Specifications


Film Removal Efficiency
>70% of fraction larger than A4 size
Drum Type
Revolving drum with variable speed motor
Pin Movement
Inward and outward moving pins
Airflow Capacity
20,000 M³/H
Self-Cleaning
Yes,retractable pins
Positioning
Upstream of pre-sorting

Operating Characteristics


Film removal efficiency
70% of fraction larger than A4
Preferred positioning
Upstream of pre-sorting
Automation level
Inward and outward moving pins
Cleaning method
Self-cleaning with retractable pins
Aeraulic suction system capacity
20,000 M3/H

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Discharge method
Revolving drum with pins
Feed method
Airflow lifting
Suction system capacity
20,000 M3/H

Custom Options


Control panel type
Variable Speed Motor Control
Pin Movement
Inward and Outward Moving Pins
Self-cleaning features
Retractable Pins for Self-Cleaning
Aeraulic Suction System
Integrated Dust Collector
Airflow System
20,000 M³/H Capacity
