Dust conditioner for ceramic dust management

Effectively manage and condition ceramic and industrial dust with a solution designed for optimal dust disposal, ensuring dust-free discharge on trucks or conveyors. Ideal for continuous operations with minimal energy consumption, this system offers a quick return on investment.

Conditions and Discharges Ceramic and Industrial Dust

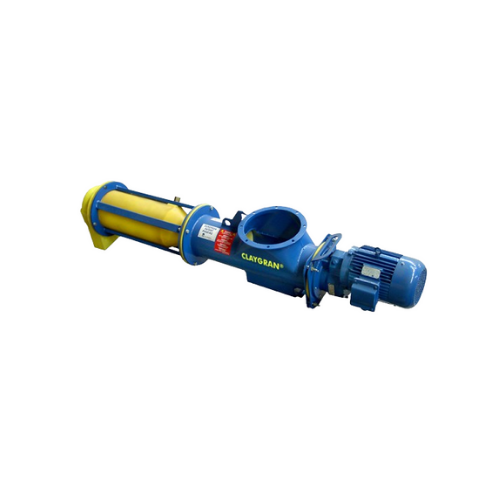

The CLAYGRAN Dust Conditioner from WAMGROUP is a specialized solution for conditioning and discharging ceramic and industrial dust. It features a carbon steel tubular housing with a SINT engineering polymer liner, designed for durability and low maintenance. Its combined feeder screw/mixing shaft effectively mixes dust with a liquid binder for safe disposal. With a capacity range of 1 to 6 m³/h, this conditioner is ideal for continuous operation in ceramics production, building materials processing, and heavy industry applications.

A modular design allows for easy replacement of conditioning tools, made from anti-wear SINT polymer, which ensures long-lasting performance. CLAYGRAN is designed for seamless integration into existing production lines and features low energy consumption, thanks to its efficient motor control. Its self-cleaning capabilities simplify maintenance, while its ability to handle various powder types makes it versatile across different manufacturing settings.

Benefits

  • Reduces costs in dust disposal through efficient conditioning and discharge.
  • Minimizes maintenance with replaceable, durable conditioning tools.
  • Lowers energy usage due to advanced motor control and design.
  • Ensures easy integration and operation with self-cleaning capabilities.
  • Enhances environmental compliance with dust-free discharge solutions.

General


Applications
Building materials,Industrial dust,Ceramic dust
End products
Ceramic bricks,Mortar,Industrial pellets,Refractory materials,Ceramic tiles,Cement
Steps before
Filtration,Dust Collection
Steps after
Dust Disposal,Transportation
Input ingredients
industrial ceramic dust,filtration dust
Output ingredients
conditioned ceramic dust,dust-free discharge
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Capacity
1 ~ 6 m3/h
Material of Construction
Carbon steel tubular housing
Rotor Shaft Material
SINT engineering polymer
Non-stick Coating
SINT engineering polymer lining
Inlet and Outlet
Vertical inlet and flush SINT outlet
Drive Unit
Integrated shaft seal
Continuous Operation
Yes
Quick Maintenance
Modular,replaceable tools
Energy Consumption
Low
Automation
Electric control panel

Operating Characteristics


Automation level
PLC / Manual
CIP/SIP
CIP 121°C
Cleaning method
CIP / Self-cleaning
Batch vs. continuous operation
Continuous
Energy efficiency
Low energy consumption
Changeover time
Quick
Discharge method
Open truck or belt conveyor

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Tubular housing material
Carbon steel
Liner material
SINT engineering polymer
Feeder/mixing shaft material
SINT engineering polymer
Machine shape
Tubular
Discharge method
Flush SINT outlet

Custom Options


Capacity
1 ~ 6 m3/h
Control panel type
Electric control and water supply panel
Discharge method
Non-stick SINT engineering polymer outlet
