Double hot cell for radiopharmaceutical chemistry
Ensure optimal safety and compliance in handling radiopharmaceuticals with a robust, lead-shielded enclosure designed for precise manipulation and secure containment of iodine-131 and other radiolabeled compounds.
Safely Manipulates and Shields Radiopharmaceutical Materials

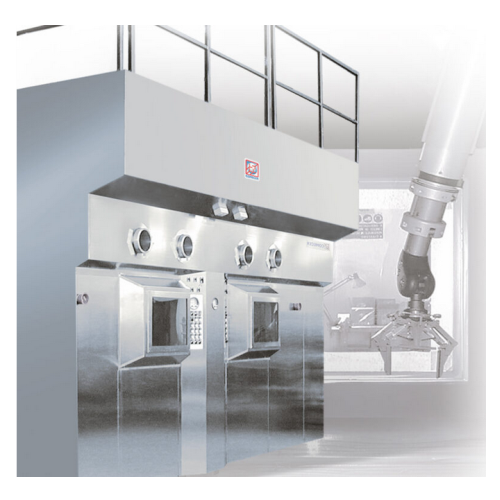

The Double Hot Cell for Radiopharmaceutical Chemistry by Comecer is engineered to tackle the complexities of high-activity iodine-131 manipulation in radiopharmaceutical and nuclear medicine settings. This equipment distinguishes itself with its robust 200 mm lead shielding, ensuring optimal radiation protection. Equipped with master-slave manipulators and large lead-glass windows, it affords operators precise control and clear visibility, making it ideal for handling radiolabeled compounds efficiently. Constructed with a carbon steel frame and AISI 316L stainless steel for enhanced corrosion resistance, it aligns with GMP requirements, featuring an air-tight closing system with silicon inflatable gaskets. This cell seamlessly integrates into existing processing lines, facilitating manual, shielded operations pivotal for the production of diagnostic radiotracers. Its design supports incorporating shielded containers via a floor port, enhancing workflow efficiency.
Benefits
- Enhances safety by providing robust 200 mm lead shielding for optimal radiation protection.
- Increases operational precision with master-slave manipulators and lead-glass windows for clear visibility.
- Ensures compliance with GMP, supporting regulatory needs in pharmaceutical production.
- Streamlines workflow by accommodating shielded containers through a floor port for efficient handling.
- Improves corrosion resistance and longevity with AISI 316L stainless steel construction.
- Applications
- Radiopharmacy products,Nuclear medicine,Radiopharmaceuticals
- End products
- Iodine-131 solution,Radiopharmaceutical kits,Diagnostic radiotracers,Iodine-131 capsules,Radiolabeled compounds
- Steps before
- Container preparation,131I isotope preparation,Shielded trolley loading
- Steps after
- Storage and transport,Radiopharmaceutical quality control,Dose calibration
- Input ingredients
- 131I bulk,shielded containers,silicon inflatable gaskets
- Output ingredients
- radiopharmaceutical products,processed 131I
- Market info
- Comecer is known for manufacturing advanced containment and isolation systems, particularly in the pharmaceutical and nuclear medicine sectors, with expertise in custom-engineered equipment, ensuring high safety and compliance standards.
- Lead Shielding Thickness
- 200 mm
- Floor Port System
- Yes
- Master-Slave Manipulators
- Yes
- Visibility
- Glass with lead equivalent shielding
- Material Frame
- Carbon steel,AISI 304 stainless steel
- Chamber Material
- AISI316L stainless steel
- Finish
- Scotch-Brite finished (frame),Mirror-Brite finished (chamber)
- Air-Tight Closing System
- Silicon inflatable gaskets
- Compliance
- GMP requirements
- Shielding material
- 200 mm lead
- Visibility
- Lead-shielded glass windows
- Port method
- Floor port for shielded containers
- Manipulator type
- Master-slave manipulators
- Tightness
- Silicon inflatable gaskets
- Corrosive resistance (e.g. acids)
- AISI 316L Stainless Steel
- Shielding thickness
- 200 mm of lead
- Shape
- Rectangular with large windows
- Material
- AISI 304,AISI 316L stainless steel
- Finish
- Scotch-Brite finished,Mirror-Brite finished
- Floor port
- For shielded containers on a special trolley
- Visibility
- Glass windows with lead shielding for perfect visibility
- Frame
- Carbon steel frame
- Shielding Material
- Lead 200 mm
- Frame Material
- Carbon steel with AISI 304 stainless steel
- Chamber Finish
- AISI316L stainless steel,Mirror-Brite finish
- Door Sealing System
- Silicon inflatable gaskets
- Manipulator Type
- Master-slave
- Visibility Feature
- Lead-shielded glass windows
