Dipping centrifuge for precision coating processes
In metalworking industries, achieving uniform and reproducible coatings is crucial for product quality. Traditional methods can result in inconsistent coverage and excess waste, impacting both the efficiency and cost-effectiveness of the operation.
Ensure precise and efficient coating

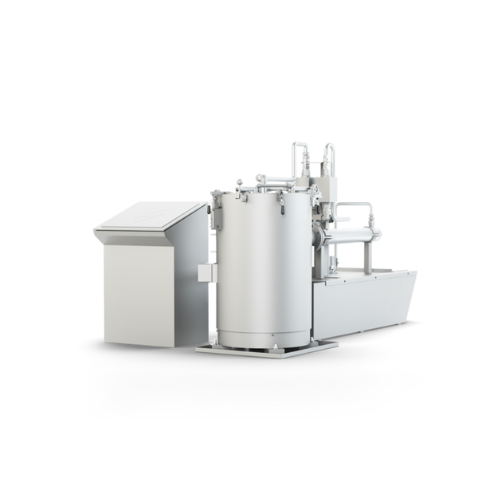

The GZ T Series from CEPA is a batch-operated dipping centrifuge designed to optimize painting, coating, soaking, and oiling processes. With a fill weight capacity of up to 50 kg and a volume of 70 liters, the system allows for precise control over dipping and centrifuging times, enabling you to achieve consistent and high-quality coatings. The GZ T’s design pumps the dipping liquid from a tank into the centrifuge until parts are fully submerged. After the dipping period, the centrifuge spins to remove excess liquid, which then drains back into the tank, reducing waste. Operation speeds reach up to 500 rotations per minute with a relative centrifugal force (RCF) of 90 g, ensuring thorough coating with minimal manual intervention.
Benefits
- Consistent and reproducible coatings
- Reduces excess waste through efficient liquid recovery
- Handles up to 50 kg per batch
- Customizable dipping and centrifuging times
- Supports multiple coating processes: painting, oiling, soaking
