Diameter grader for cucumbers and carrots

Optimize your vegetable processing with precision diameter grading for cucumbers, carrots, and pickles, ensuring consistent sizing and alignment to enhance product quality and streamline your production line.

Grades and Aligns Elongated Produce

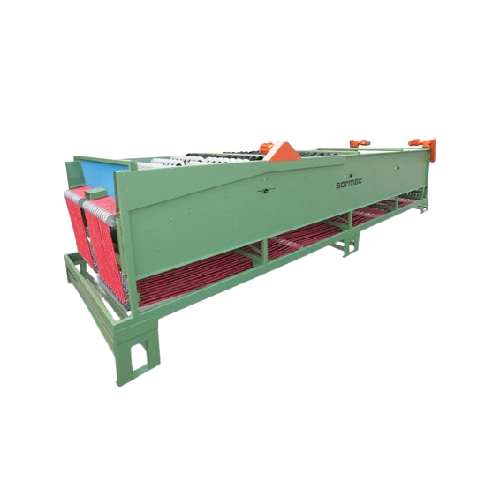

The Diverging Chain Grader AS from Sormac is tailored for precise diameter grading of cucumbers, carrots, and pickles. Utilizing synchronized chains that diverge as products traverse the grader, it ensures accurate sizing by allowing products to exit at specific points based on their diameter. This process is supported by rotating brushes and discs that help align products efficiently. Ideal for food processing and agricultural sectors, this grader is capable of handling capacities from 1 ton to over 150 tons per hour. Designed for continuous, high-speed operations, it seamlessly integrates with upstream and downstream production lines, offering configurable grading sizes and multiple material options including robust stainless steel construction. Maintenance is streamlined, with the option for collection hoppers and outfeed belts that enhance operational efficiency.

Benefits

  • Ensures consistent product quality by accurately grading based on diameter.
  • Increases production capacity with the ability to handle over 150 tons per hour.
  • Enhances operational efficiency with adjustable sizing to meet variable market demands.
  • Reduces manual intervention and labor costs through automated, continuous operation.
  • Adapts to diverse processing lines with customizable material options and configurations.

General


Applications
Cucumbers,Pickles,Brined products,Carrots
End products
Pickled sliced cucumbers,Brined gherkins,Sliced cucumbers for salads,Diced brined cucumbers,Baby carrots for snacking,Julienned carrots,Carrot sticks,Pickled carrot spears
Steps before
Transport conveyor,Washing,Product alignment
Steps after
Collection,Inspection,Packing,Outfeed transportation
Input ingredients
elongated products,cucumbers,carrots,pickles
Output ingredients
graded cucumbers,graded carrots,graded pickles
Market info
Sormac is known for its expertise in manufacturing high-quality vegetable processing equipment, particularly peeling, washing, and slicing machines, with a strong reputation for innovation, reliability, and customer-focused solutions in the food processing industry.

Technical Specifications


Grading Diameter Range
10 mm up to 65 mm (0.4” – 2.56”)
Capacity
1 ton/hour up to 150 tons/hour (2,200 – 330,000 lbs/hr)
Construction Material
Mild painted steel or stainless steel
Grading Configuration
Adjustable grading sizes
Speed
Chains move at the same speed
Machine Type
Single or double bed machine

Operating Characteristics


Working Mechanism
Diverging chain grader system
Automation Level
Not specified
Batch vs. Continuous Operation
Inline continuous
Adjustable Grading Sizes
Yes
Product Alignment
Rotating brushes and discs
Product Collection Method
Directly under grading chains

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel option available
Abrasion resistance
Very robust construction
Cleanability
Adjustable grading sizes

Product type Characteristics


Grading types
Splitter / Scalper / Sample grader

Physical Characteristics


Footprint
Single- or double bed
Material
Mild painted steel or stainless steel
Product Diameter Range
10 mm to 65 mm (0.4” – 2.56”)
Capacity
1 ton/hour up to 150 tons/hour (2,200 – 330,000 lbs/hr)
Discharge Method
Conveyor belts or directly into pallets/containers
Product Collection Area
Divided into sections corresponding to grading sizes

Custom Options


Material Execution
Mild painted steel / Stainless steel
Bed Type
Single / Double
Capacity Range
1 ton/hour – 150 tons/hour
Grading Sizes
Adjustable
Product Discharge Method
Conveyor belts / Direct to pallets
Options
Electronic weighers / Inspection belt
