Demineralization and carbonation for bottled table water

Ensure consistent carbonation and precise blending for beverage production while minimizing CO2 consumption, enhancing your product quality and operational efficiency.

Deaerates and Carbonates Beverages Continuously

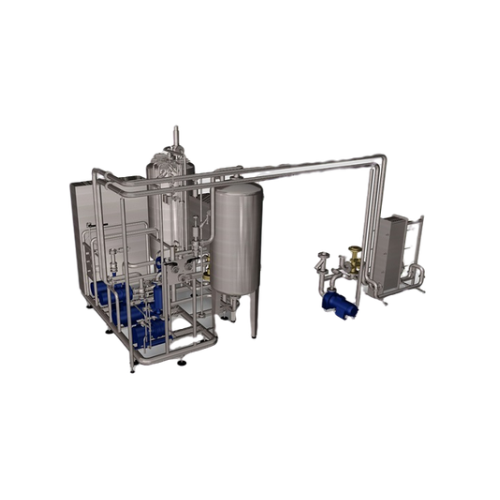

The Innopro DCX from KHS Group is a versatile deaerator and carbonator unit tailored for high-speed beverage and liquid food production lines. It adeptly uses vacuum spray deaeration techniques in one or two stages for flexible processing based on product requirements. This unit is integral to operations involving the preparation of mineral waters, soft drinks, and fruit juices, offering a seamless transition from deaeration to carbonation. With a throughput capacity of up to 65,000 liters per hour, it accommodates demanding production needs effectively.

Automation is a key feature, with recipe-controlled CO2 addition and buffer tank pressure adjustments that ensure precise carbonation while minimizing CO2 usage and operator intervention. This results in improved energy efficiency and consistently high product quality.

The compact design ensures easy integration into existing processing lines, requiring minimal space. The system’s robust construction offers reliability with reduced maintenance demands, enhancing overall line performance with less downtime.

The Innopro DCX is an indispensable asset for beverage producers seeking to optimize their processing capabilities and maintain superior product quality in a competitive market.

Benefits

  • Enhances product quality through precise deaeration, ensuring optimal carbonation levels.
  • Increases line efficiency with high throughput capacity up to 65,000 liters per hour.
  • Minimizes CO2 consumption with automated, recipe-controlled processes.
  • Reduces operator intervention, lowering labor costs and errors.
  • Integrates seamlessly into existing production lines, requiring minimal floor space.

General


Applications
Mineral water,Liquid food,Beverages,Soft drinks,Fruit juices
End products
Flavored sparkling water,Apple juice,Orange juice,Lemon-lime soda,Iced tea with fruit flavors,Cola beverage,Still mineral water,Carbonated mineral water
Steps before
Water treatment,Juice extraction,Concentration,Mixing
Steps after
Filling,Capping,Labeling,Packaging
Input ingredients
non-carbonated table water,carbonated table water,mineral water,CO2,fruit juices
Output ingredients
carbonated table water,non-carbonated table water,soft drinks,blended fruit juices
Market info
KHS is known for manufacturing innovative filling and packaging systems for the beverage, food, and non-food industries, renowned for their engineering expertise, high-quality standards, and sustainable solutions in ensuring efficient production processes.

Technical Specifications


Deaeration rate
Continuous
CO2 Addition Rate
0.5 to 9 g/liter
Capacity
Up to 65,000 liters per hour
Stage configuration
One or two stages
Automation
Fully automatic
Space Requirement
Low

Operating Characteristics


Working mechanism
Vacuum spray deaeration
Batch vs. continuous operation
Inline Continuous
Automation level
Fully automatic
Integrated steps
Deaeration and carbonation
CO2 saturation control
Recipe-controlled buffer tank pressure
Maintenance requirement
Minimum maintenance
Flow rate
Up to 65,000 liters per hour

Product type Characteristics


Foaming
Low Foam / High Foam
Carbonation
0.5 to 9 g/l CO2
Container Compatibility
PET,Glass
CO2 Consumption
Minimized
Product flow rate
Up to 65,000 liters/hour
Table Water Preparation
Carbonated / Non-carbonated

Physical Characteristics


Compact footprint
Low space requirement
Discharge method
Inline
Machine footprint
Compact design suited for high throughput

Custom Options


Control Panel Type
HMI / Touchscreen
Integration Capabilities
Process Automation Systems
Space Requirement
Compact Design
CO2 Addition Rate
0.5 to 9 g/liter
Deaeration Stages
One or Two Stages
Operator Intervention
Minimized through Automation
