Delta robots for high-precision assembly and handling
In manufacturing environments where high precision and versatility are crucial, traditional robotic solutions can struggle with speed and accuracy. These challenges are particularly evident in industries requiring complex assembly and delicate handling tasks under strict tolerances.
Optimize precision handling and assembly tasks

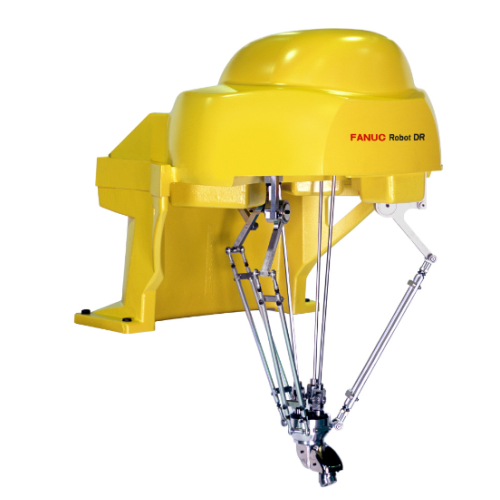

The FANUC Delta Robots, compatible with the R-30iB controller, are designed for high-precision assembly and handling applications. Unique in their design and capabilities, these robots offer models with 4 or 6 controlled axes, accommodating various payload capacities and motion ranges. The DR/05-3A-6X and DR/05-4A models, for instance, provide a maximum payload of 0.5kg (optionally up to 1kg) and motion ranges up to φ420mm, with repeatability of ±0.02mm. Heavier-duty models like the DR/12-14A-3X support payloads up to 12kg with a motion range of φ1350mm and repeatability of ±0.03mm. Their design supports multiple installation options, including floor, upside-down, and angled setups, enhancing operational flexibility. These robots are ideal for handling and assembly tasks in a range of industries, and they integrate seamlessly with controllers like the R-50iA Mate, ensuring reliable performance and ease of use. Manufacturer: FANUC.
Benefits
- High precision with repeatability up to ±0.02mm
- Versatile installation options
- Various payload capacities for different application needs
- Seamless integration with R-50iA Mate controller
- Ideal for complex assembly and handling tasks
