De-juicing unit for wine must processing

Optimize your winemaking process by effectively separating seeds and skins from wine must, ensuring a continuous flow for clarified production outcomes.

Separates and Filters Must and Juice Continuously

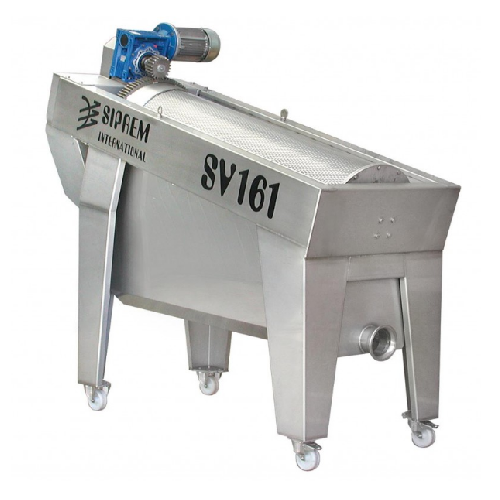

The SV 161 de-juicer from Siprem International is engineered for winemaking and beverage production, offering efficient separation of solids from must and fruit juices. Using a perforated cylinder and counter-rotating impeller, it filters skins and seeds, ensuring uninterrupted operation. Designed for high-speed continuous processing, it manages up to 800 hl per hour, vital for maintaining clarity in filtered wine and juices. The unit integrates seamlessly into pre-processing lines, supported by a 100 mm diameter clamp connector for inputs and a 120 mm diameter outfeed. Constructed from Aisi 304 stainless steel and equipped with rubber cleaning strips, it ensures durability and easy maintenance, while its mobile design on steering wheels enhances operational flexibility.

Benefits

  • Enhances operational efficiency by maintaining continuous de-juicing without interruptions.
  • Increases product clarity and quality by effectively separating solids from liquids.
  • Reduces labor requirements with easy-to-clean design and mobile configuration.
  • Supports high production demands with a capacity of up to 800 hl per hour.
  • Ensures durability and longevity with Aisi 304 stainless steel construction.

General


Applications
Juices,Wine must,Fruit processing,Wine
End products
Refined fruit juice,Clarified grape juice,Wine must without seeds and skins,Filtered wine,Fruit puree
Steps before
Sorting,Crushing,Destemming
Steps after
Fermentation,Pressing,Filtration
Input ingredients
wine must
Output ingredients
filtered liquid,solid parts,peel,seeds
Market info
Siprem International is known for manufacturing advanced winemaking equipment, specializing in complete systems for grape reception, processing, and fermentation. Their expertise in innovative technology and custom solutions has earned them a strong reputation in the wine industry.

Technical Specifications


Material
Aisi 304 stainless steel
Production Flow
800 hl/h
Operations
Continuous
Automation
Not specified
Infeed Connector Diameter
100 mm
Outfeed Connection
120 mm diameter

Operating Characteristics


Working mechanism
Perforated cylinder filtration
Integrated steps
Continuous operation
Batch vs. continuous operation
Continuous
Cleaning method
Openable casings for manual cleaning
Material handling
Impeller-based solid extraction
Mobility
Mounted on wheels

Material Compatibility


Corrosive resistance (e.g. acids)
Aisi 304 stainless steel

Physical Characteristics


Machine Footprint
Mounted on wheels,two of which are steering
Material
AISI 304 Stainless Steel
Feed Method
Perforated cylinder with a screw feed
Discharge Method
Impeller pushing solids outwards
Tank Shape
Perforated cylinder
Maintenance Access
Top casings open in two halves
Connection Size
100 mm diameter infeed,120 mm diameter outfeed

Custom Options


Material
Aisi 304 stainless steel
Mobility
Mounted on wheels
Cleaning Accessibility
Top casings open in two halves
Connector size
100 mm diameter clamp connector for must infeed,120 mm diameter outfeed connection
